- Aaon Condenser Fan Motor
- HP: 3/4
- Voltage: 460V
- Phase: 1
- RPM: 1075
- FLA: 2.0
- Hertz: 60
- Frame: 48Y
- Enclosure: SEMI
- Rotation: CCWLE
- Bearings: 203BALL
- Type: AC
- Shaft Diameter: 1/2″
- Shaft Length: 2.5″

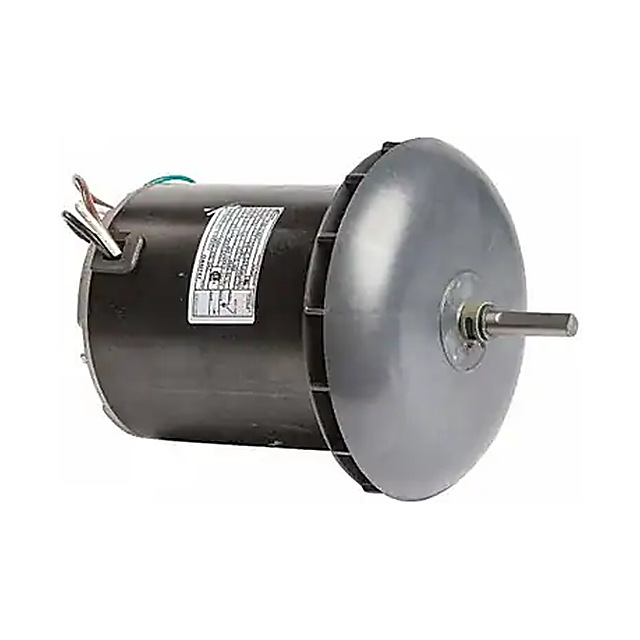

AAON R1747B, 3/4 HP, CONDENSER FAN MOTOR, 460 V, 1075 RPM, MPN F48U09A27
$561.29
Description
The Aaon R1747B condenser fan motor is 3/4 HP, 460 V, and includes the rain shield. Further info includes: Manufacturer’s part number Genteq F48U09A27, capacitor 15 @ 370 V model # 37150H, fan blade (s) – unit serial # is needed to verify, 26″ blade model # P86780 and 30″ blade model # G009610, and rain shield (new motor includes the rain shield) – if AO Smith or Genteq R17270, and US Motor R17271.
Additional information
| Weight | 26 lbs |
|---|---|
| Dimensions | 14 × 11 × 11 in |
| Brand | Aaon |
| HP | 3/4 |
| Voltage | 460 |
| Description | Parts – OEM |
