- Grundfos recirculation pump
-
Material: Stainless Steel
-
Horse Power: 1/25
-
Voltage: 115V
-
Max Pressure (PSI): 145
-
Connection Size: 3/4″
-
Connection Type: FNPT x MNPT
-
Cord Length: 10′
-
Poles: 2
-
Type: Pump
-
Non-Dedicated
-
Mount: In-Line
-
Max Flow (GPM): 6.5
-
Flow Range (GPM): 0-6.5
-
Frequency: 60 Hz
-
Head Range (ft.): 0-6
-
Max Head (Ft): 6
-
Phase: 1
-
Temperature Range (F): 36°F to 150°F
-
Includes: Line Cord
- Replaces Model #: 99452459

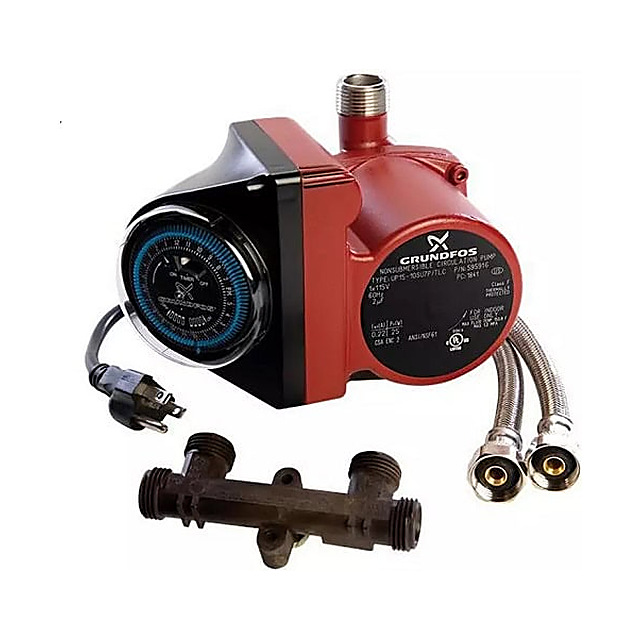

GRUNDFOS, 595916, UP15-10SU7P TLC, Comfort, Hot Water, Recirculation Pump, 3/4″ NPT, 115 V
$320.00
Description
Note: This style set up is illegal to install in the state of Massachusetts as it is considered cross contamination as it mixes hot and cold water lines.
Grundfos Pumps is proud to bring the comfort and savings of hot water recirculation to the existing homes market with the Comfort Series Instant Hot Water System. The Comfort System includes a Grundfos UP15-10SU7/TLC circulator and the revolutionary Comfort Valve. The stainless steel circulator, complete with timer and 10-foot power cord, is installed directly to the hot water discharge on the water heater. The Comfort Valve is installed under the sink at the fixture furthest from the water heater, and the system uses the existing cold water line to return hot water to the water heater.
The Comfort System is designed to give homeowners the added comfort and convenience of instant hot water and reduce the amount of wasted water. Unlike our competitor’s products, there are no pumps under sinks (and thus no power required under sinks), no return lines required, and no buttons to push. Set the timer on the Grundfos pump and stop waiting for hot water.
Features:
- No return line required
- Installs in less than one hour
- No electricity needed under the sink
- Built-in timer & line cord
- Uses less energy than a 25-watt light bulb
- Can save up to 16,000 gallons of water per year, per household
- Includes timer, linecord, thermal by-pass valve, two valve mounting screws
- Timer is 24 hr, 3 position, 15 minute intervals
- Flex Hoses are included
Additional information
| Weight | 6.5 lbs |
|---|---|
| Dimensions | 7 × 6 × 4 in |
| Brand | Grundfos |
| Material | Stainless Steel |
| HP | 1/25 |
| Voltage | 115 |
| Description | Parts – OEM |
