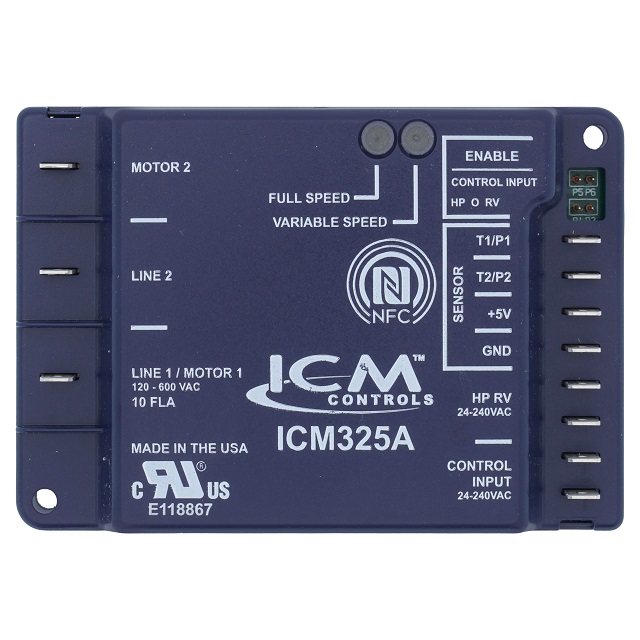

Name: ICM Controls, ICM325A, Single Phase, Head Pressure Control, 120-600 VAC
SKU: ICM325A
Availability: InStock

ICM Controls, ICM325A, Single Phase, Head Pressure Control, 120-600 VAC

New

$166.00

ICM Controls ICM325A
Frequency: 50-60 Hz
Product Type: Single Phase Control
Application: Air Conditioners, Heat Pump
Line Voltage: 120-480 VAC
Maximum: 10 amps
Minimum: 100 mA
Operating Temp Range: -40° to 176°F
Modulation: 70° to +100°F
Sensors: 10K ohms at 77°F
Replaces: ICM326HNC-LF, ICM333C-LF, ICM327HNC-LF, ICM325HNC-LF

Description

If the system pressure gets too low or the condenser temperature gets too cold, the ICM325A lowers the fan speed accordingly. Other head pressure controls on the market just turn the fan off completely. This method results in inconsistent head pressure, inconsistent cooling, rattling pipes & ducts, system leaks, and ultimately a shortened life span of the condenser fan motor and compressor.

Specifications

Operates as temperature or pressure sensitive motor fan speed control
Helps prevent evaporator freeze-ups, low pressure cut-outs and liquid-slugged compressors in low ambient conditions
Integral heat pump bypass circuitry allows electronic bypass of speed control
Eliminates overshoots common to on/off and pressure switch controls
Near field communication (phone tap) using the ICM OMNI App
Features: hard start, low temperature bypass, isolated 24 VAC supply
Controls up to 3 refrigeration circuits
RoHS compliant / lead free design
Typical application: A/C and heat pumps
Universal 120-600VAC line voltage and 24-240VAC control voltage
Line voltage: 120 – 600 VAC
Control voltage: 24-240 (Jumper enabled)
Frequency: 50-60 Hz
Operating temperature: -40°F to +176°F
