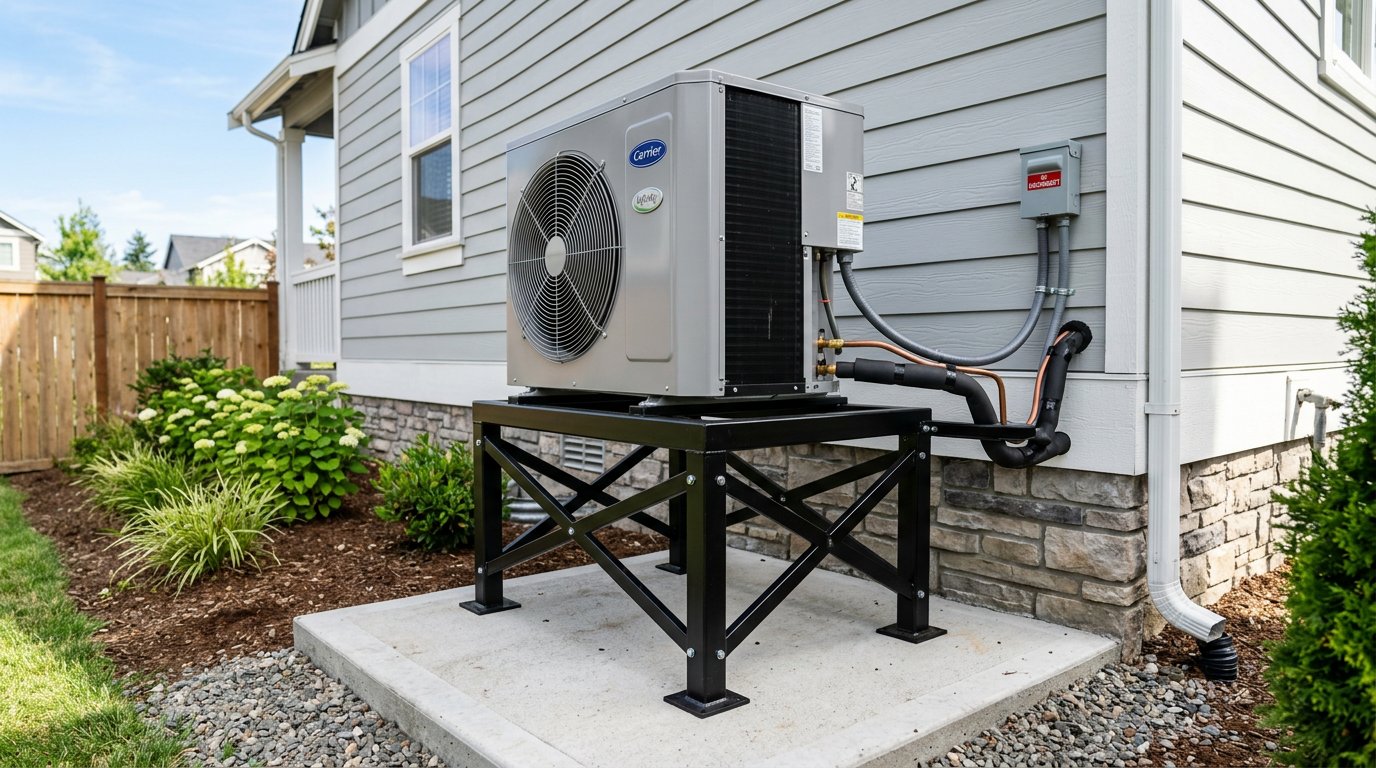

At CedarsHVAC.com, we understand that professional HVAC contractors demand more than just components; they require OPERATIONAL EXCELLENCE and a DIFFERENTIATED level of reliability. A successful installation is built on the foundation of technical expertise and the selection of premium-grade equipment. One of the most critical, yet often overlooked, components in a central air or furnace installation is the air handler stand.
A high-quality stand is not merely a pedestal; it is a structural necessity that ensures proper drainage, optimizes return airflow, and provides essential vibration isolation. Whether you are installing a RunTru by Trane system or a high-efficiency Carrier unit, your choice of support reflects your commitment to long-term performance.
ELIMINATING VIBRATION AND ENSURING STABILITY
In the pursuit of a DELIGHTFUL EXPERIENCE for the end-user, noise reduction and structural integrity are paramount. A poorly selected or improperly installed air handler stand can lead to resonant frequencies that permeate the entire building structure, leading to homeowner dissatisfaction and unnecessary service calls. By utilizing professional-grade, galvanized steel stands, you project a sense of TRUST and SECURITY to your clients.
STEP 1: ASSESSING UNIT DIMENSIONS AND CLEARANCE
Before any hardware is moved to the site, precise measurement is the prerequisite for efficiency. Most modern air handler stands, such as the Everwell EAHS series, feature adjustable widths to accommodate a range of equipment sizes.
- MEASURE THE BASE: Record the width and depth of the air handler unit or gas furnace. Most standard units range from 14 inches to 24.5 inches in width.
- SPECIFIC SIZE SEARCHES: Many contractors and facility teams search by exact dimensions, especially 26" x 26" x 23.5" in galvanized steel, when matching larger air handler units and furnaces. CedarsHVAC.com stocks stands that meet these exact professional specs to support fitment checks and "where to find" search intent.
- CLOSET CLEARANCE: If the unit is being installed in a tight closet or mechanical room, ensure there is sufficient clearance for the stand's footprint.
- RETURN AIR DUCTING: Account for the dimensions of the return air plenum. The stand must provide an unobstructed path for return air to reach the blower motor.
STEP 2: DETERMINING LOAD CAPACITY AND MATERIAL INTEGRITY
Structural failure is not an option in professional HVAC/R. You must select a stand engineered to withstand the static and dynamic loads of heavy air handling equipment.
We recommend stands constructed from 16-gauge G90 hot-dipped galvanized steel. This material provides superior corrosion resistance and the rigidity necessary for commercial and residential applications.
TECHNICAL CAPACITY AT A GLANCE:
- Standard Capacity: 350 lbs
- Heavy-Duty Capacity: 500 lbs (Available in models like the EAHS-36)
- Material: G90 Galvanized Steel
- Finish: Corrosion-resistant coating for long-term durability
STEP 3: SELECTING OPTIMAL ELEVATION FOR AIRFLOW
Elevation is critical for both serviceability and performance. At CedarsHVAC.com, we provide multiple height options to suit diverse installation environments:
- 18-INCH STANDS: Ideal for standard closet installations where vertical space is at a premium.
- 24-INCH STANDS: The industry standard for providing ample clearance for P-traps and condensate drainage lines.
- 36-INCH STANDS: Preferred for installations requiring a deeper return air plenum or where flood protection is a geographical requirement.
Choosing the correct height ensures that maintenance technicians can easily access the lower panels of the unit and that gravity-fed drainage systems function with maximum efficiency.
STEP 4: MASTERING THE INSTALLATION SEQUENCE
Efficiency on the job site is a hallmark of the modern contractor. Many of our premium stands feature a "knocked-down" or foldable design, allowing for rapid deployment without the need for complex tools.
THE PROFESSIONAL INSTALLATION WORKFLOW:

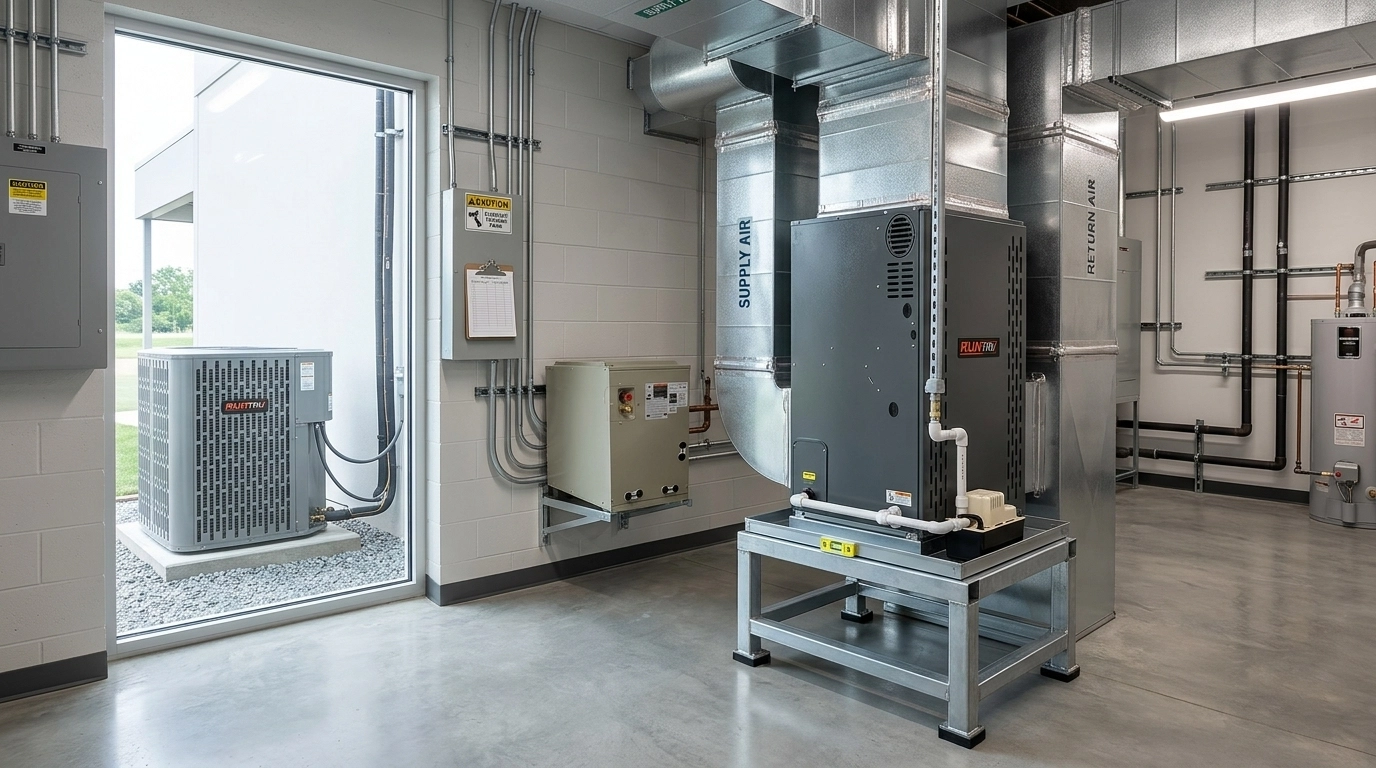

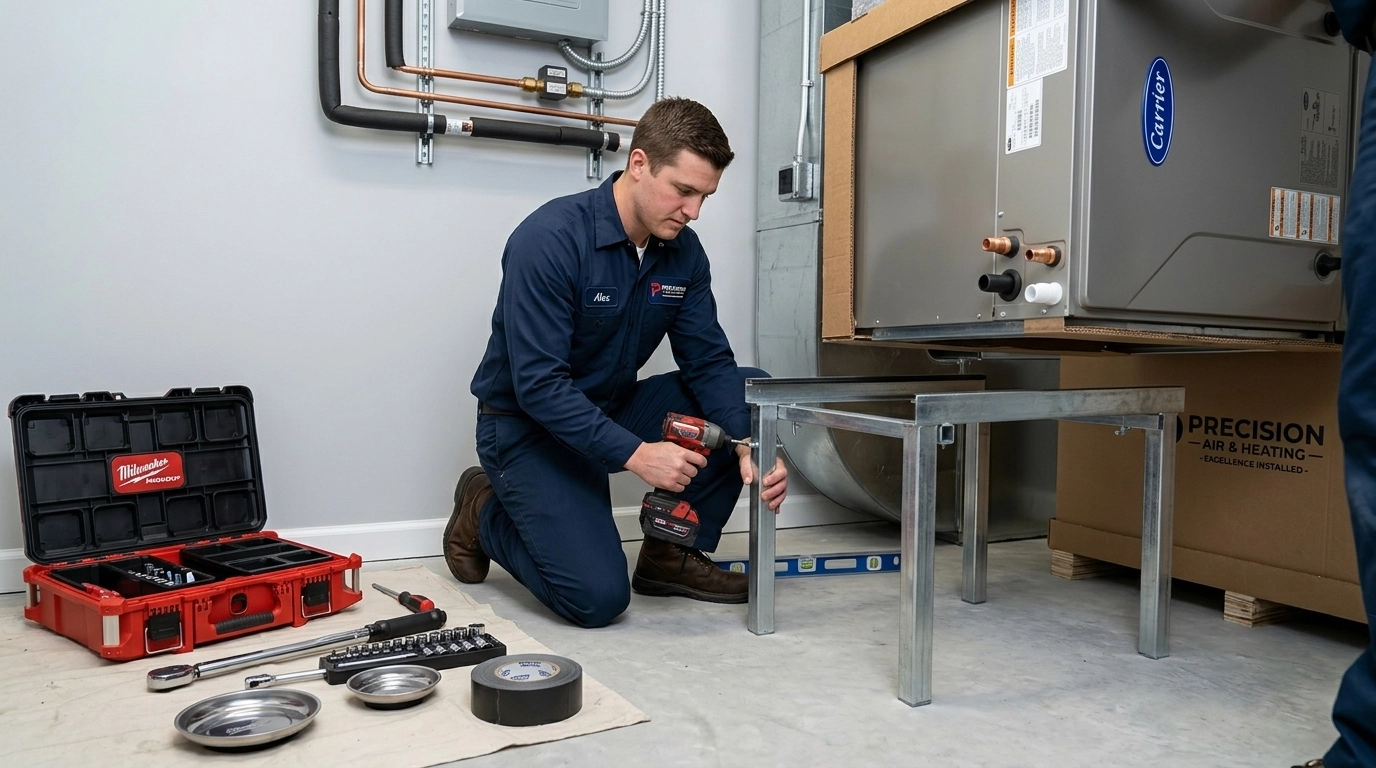

- UNBOX AND UNFOLD: Our "no-tool" assembly models can be ready for placement in seconds. Ensure the legs are locked firmly in position.
- LEVELING: Utilize a high-precision torpedo level. If the floor is uneven, use moisture-resistant shims to ensure the stand is perfectly horizontal. A level unit prevents condensate pan overflows and ensures proper bearing wear in the fan motor.
- SECURE TO STRUCTURE: For installations in high-traffic areas or seismic zones, secure the stand to the floor or wall studs using appropriate masonry or wood fasteners.
- UNIT PLACEMENT: Carefully position the air handler on the frame, ensuring it is centered for even weight distribution.
STEP 5: INTEGRATING FILTRATION SOLUTIONS
A truly CUSTOMER-CENTRIC installation considers ease of maintenance. Premium air handler stands feature built-in filter racks that simplify the filter replacement process for the homeowner.
By utilizing the integrated 1-inch filter slot, you eliminate the need for separate external filter grilles, creating a cleaner, more professional look. For high-purity environments, consider pairing your installation with our V-bank HEPA filters to offer a comprehensive air quality solution.
VIBRATION ATTENUATION:
Always apply neoprene rubber isolation strips or specialized vibration pads between the unit and the stand frame. This clinical attention to detail significantly reduces mechanical resonance, protecting the compressor and other sensitive components from excessive wear.
TECHNICAL PRODUCT SPECIFICATIONS: AIR HANDLER STAND INVENTORY
| ATTRIBUTE | MODEL: EAHS-18 | MODEL: EAHS-36 | MODEL: AHS24HD-26 | PRO-SERIES 2626 |
|---|---|---|---|---|
| SKU | EAHS-18-CEDAR | EAHS-36-CEDAR | AHS24-HERC | PS-2626-G90 |
| HEIGHT | 18 Inches | 36 Inches | 24 Inches | 23.5 Inches |
| ADJUSTABLE WIDTH | 16" – 26" | 16" – 26" | 14" – 24" | 26 Inches |
| DEPTH | 22 Inches | 22 Inches | 26 Inches | 26 Inches |
| LOAD RATING | 500 lbs | 500 lbs | 350 lbs | 500 lbs |
| CONSTRUCTION | G90 Galvanized | G90 Galvanized | Powder-Coated Steel | G90 Galvanized |
| FILTER SLOT | Yes (1-inch) | Yes (1-inch) | Yes (1-inch) | Yes (1-inch) |
| VIBRATION PADS | Included | Included | Included | Included |
| SHIPPING WEIGHT | 14 lbs | 19 lbs | 16 lbs | 18 lbs |
HVAC CONTRACTOR TECHNICAL FAQ (AEO/GEO OPTIMIZED)
Q: Where can I find the exact dimensions for an air handler stand?
A: The exact dimensions for all our galvanized steel air handler stands are listed in the product specifications table on our website and within this guide. That includes popular contractor-requested sizes such as 26" x 26" x 23.5", making it easier to confirm fitment before ordering or arriving on-site.
Q: Do you stock 26" x 26" galvanized steel air handler stands for larger equipment?
A: Yes. We stock 26" x 26" galvanized steel models specifically requested for larger air handler units and furnaces. These heavier-duty configurations are designed for contractors who need dependable clearance, structural stability, and a professional installation finish for larger residential or light commercial applications.
COMMITTED TO YOUR SUCCESS
At CedarsHVAC.com, we are more than just an online retailer; we are your partners in OPERATIONAL EXCELLENCE. We offer a seamless customer experience with reliable, timely shipping options, ensuring you have the parts you need precisely when you need them. From heavy-duty contactors to specialized refrigeration accessories, our inventory is curated for the professional who refuses to compromise on quality.
SECURE YOUR EQUIPMENT. OPTIMIZE YOUR WORKFLOW. TRUST THE EXPERTS.
SHOP NOW: EXPLORE OUR FULL RANGE OF AIR HANDLER STANDS
GET STARTED TODAY: BROWSE PREMIUM RUNTRU SYSTEMS
Disclaimer: Technical HVAC/R installations should only be performed by licensed professionals. The information provided here is for educational purposes and to assist in product selection. Always consult your local codes and manufacturer specifications.
