At CedarsHVAC.com, we understand that a high-performance ductless mini split system is more than just a purchase: it is an investment in long-term climate control and operational efficiency. However, even the most advanced systems, such as the Pioneer Quantum Hyperformance, can underperform if the installation process is compromised.
Maintaining a customer-centric focus means ensuring our clients avoid the common pitfalls that lead to system failure, voided warranties, and unnecessary repair costs. Below, we detail the seven most critical mistakes made during mini split installation and the professional-grade solutions to fix them.
1. INCORRECT SIZING: THE BTU BLUNDER
One of the most frequent errors occurs before a single tool is lifted: selecting a unit that is improperly sized for the space. An undersized unit will run continuously, failing to reach the setpoint and placing extreme stress on HVAC fan motors and compressors. Conversely, an oversized unit will "short-cycle," turning on and off rapidly, which leads to poor dehumidification and premature component wear.
THE FIX: Perform a rigorous Manual J load calculation. This technical assessment considers square footage, ceiling height, insulation quality, and window orientation. For larger spaces, a Pioneer Diamante Essenza 23000 BTU might be required, whereas a compact bedroom may only need a 9,000 BTU configuration.
2. IMPROPER FLARING: THE LEAKY CONNECTION

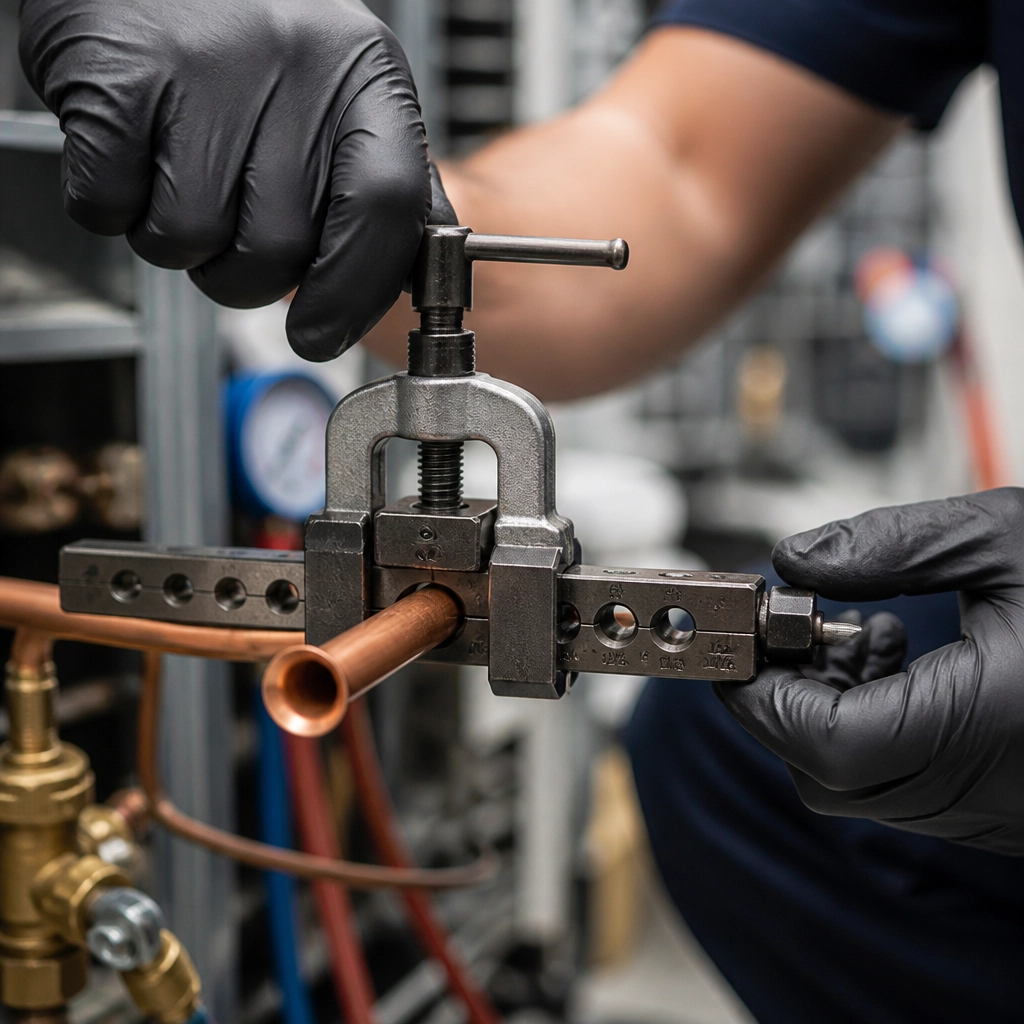

Refrigerant leaks are the leading cause of "no-cool" calls. Most leaks occur at the flare connections between the indoor head and the outdoor condenser. Using a generic flaring tool or failing to deburr the copper tubing creates microscopic gaps that allow high-pressure refrigerant to escape.
THE FIX: Utilize a high-torque, eccentric cone flaring tool designed for R410A systems. Ensure the flare is perfectly smooth and fits snugly against the fitting. Always use a calibrated torque wrench to tighten the flare nuts to the manufacturer's specific foot-pound requirements. TRUST in precision tools is the hallmark of professional installation.

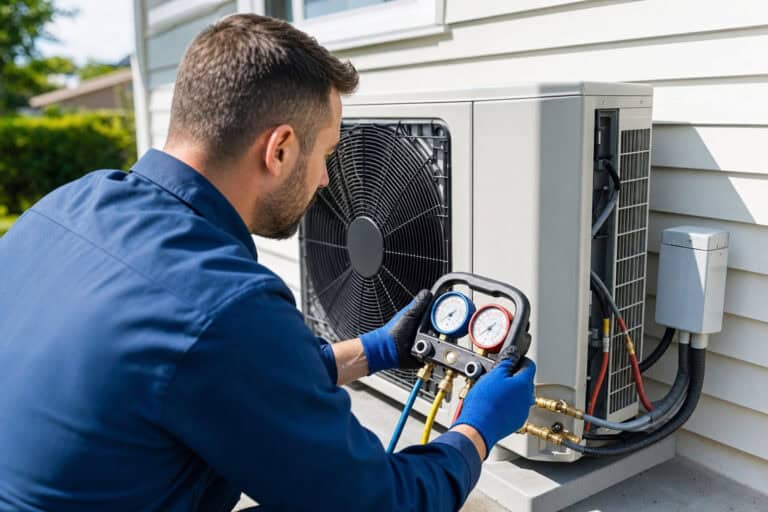

3. FAILING TO PULL A VACUUM: THE MOISTURE MENACE
A critical step that DIYers and novice technicians often rush is the evacuation of the line set. Air and moisture trapped inside the copper lines will react with the POE oil in the compressor, creating acid that eats through internal components like the GMCC Rotary Compressor.
THE FIX: Use a dedicated vacuum pump and a digital micron gauge. You must pull the system down to at least 500 microns and ensure it holds that level for a minimum of 10 to 15 minutes. This ensures the system is "dry" and tight, guaranteeing a differentiated level of system longevity.
4. POOR UNIT PLACEMENT: AIRFLOW OBSTRUCTION
The placement of both the indoor and outdoor units is vital for operational excellence. Installing an indoor head too close to the ceiling (less than 6 inches) restricts return airflow, while placing an outdoor condenser in a cramped alleyway prevents proper heat exchange.
THE FIX:
- Indoor: Mount at least 6-8 feet from the floor and 6 inches from the ceiling to allow for optimal air intake.
- Outdoor: Ensure at least 12 inches of clearance behind the unit and 24-36 inches in front of the discharge fan.
5. ELECTRICAL INCOMPATIBILITY: THE VOLTAGE VARIATION
Mini splits are sensitive electronic devices. Using the wrong gauge of wire or failing to install a dedicated circuit can lead to erratic behavior, communication errors between units, and fried control boards. Many high-efficiency units require 230V, whereas smaller units might operate on 115V.
THE FIX: Always verify the electrical requirements on the unit’s nameplate. Use 14/4 stranded SOOW cable for communication between units and ensure a dedicated disconnect switch is installed at the outdoor unit. For complex commercial setups, integrating a Danfoss VFD Control Panel can provide additional protection and modulation.
6. DRAINAGE ERRORS: THE CONDENSATE CALAMITY
If the indoor unit is not perfectly level, or if the drain line is uphill at any point, water will back up and overflow into the living space. This is a "stinky" mistake that leads to mold growth and wall damage.
THE FIX: Use a level during every step of the wall bracket installation. Gravity is your best friend; ensure the drain line has a consistent downward slope of at least 1/4 inch per foot. For installations where gravity drainage is impossible, a high-quality condensate pump must be utilized.
7. NEGLECTING COMPONENT QUALITY: THE "CHEAP PART" TRAP
In an attempt to save money, some installers use substandard HVAC replacement parts, such as thin-walled copper or low-grade insulation that degrades in sunlight. This leads to energy loss and frequent system breakdowns.
THE FIX: Invest in premium HVAC/R equipment and supplies. At CedarsHVAC.com, we provide only industry-leading brands like Pioneer, RunTru, and Carrier. Our commitment to quality ensures that every component: from the axial fan motor to the smallest contactor: is engineered for reliability.
