Valves
-
$178.75- Danfoss TXV
- P/N: 067N3154
- 6.5 Ton
- TGE
- R32; R410A
- -40 to 50 degrees F
- External equalizer
- Adjustable
-
-
$188.21- Danfoss TXV
- 5/8″ x 7/8″ ODF
- 60″ Capillary
- R404A/R507
- 7.5 Tons
- Externally equalized
-
-
-
-
$146.79- Bell & Gossett Reducing Valve
- Size: 1/2″
- Connection Type: FNPT x FNPT
- Max Pressure (PSIG): 25
- Min Pressure (PSIG): 10
- Pressure Set Point: 12 psig
- Lead Free: Yes
- Material: Brass
- Application: Heating
- Max Inlet Pressure: 125 PSI
- Temperature Range (F): 225°F Max
-
$139.47- Emerson (White Rodgers) gas valve
- Ambient Temperature Range (C): -40 C to +79 C
- Ambient Temperature Range (F): -40 F to +175 F
- Body Pattern: Straight Through
- BTU/hr (LP): 226,800
- BTU/hr (NG): 140,000
- Electrical Connections: 1/4″ Quick Connect
- Electrical Rating: 24 VAC
- Electrical Rating (amp): 0.3 amps
- Frequency: 50/60 Hz
- Ignition Type: Intermittent
- Inlet/Outlet Size (in): 1/2″ x 1/2″
- Opening Characteristics: Slow Opening
- Pressure Ratings (kPa): 3.5 kPa
- Pressure Ratings (psi): 1/2 psi
- Pressure Regulator Adjustment Setting (psi)(LP): 7.0″ – 12.0″ WC
- Pressure Regulator Adjustment Setting (psi)(NG): 2.5″ to 5.0″ WC
- Pressure Tapping: Yes
- Type of Gas: Natural Gas/LP
-
$212.69- Rheem-Ruud control valve
- Genuine Factory OEM repair part
- Guaranteed to fit and function properly
- Ships in original factory packaging
- Not an aftermarket or generic part
-
-
$275.73- Honeywell Gas Valve
- Ignition Type: Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot
- BtuH Capacity: 300,000 BtuH
- Valve Type: Standard Opening
- Coil Volts: 24 V
- Gas Type: NG/LP
- Inlet Size: 3/4 in
- Outlet Size: 3/4 in
- LP Conversion Kit: Yes
- Side Taps: Yes
- Inlet Pressure Tap: Yes
- Reducer Bushing Kit: (2) 3/4 x 1/2 in and (1) 1/2 x 3/8 in
- Ambient Temp. Range: -40 to 175 Degrees F
- Amps AC: 0.7 A
- Pressure Setting Range: 3.5 in wc
- Includes: (2) 3/4 x 1/2 in and (1) 1/2 x 3/8 in Reducer Bushings, Natural to LP Gas Conversion Kit
-
-
$261.32- Honeywell gas valve
- Fuel Type: Natural Gas
- Body Pattern: 90° with 1/2″ Inlet and 1/2″ Inverted Flare Outlet
- Temperature Range (F): 32°F to 150°F
- Pressure Reg Setting: 5″ W.C. (Pilot & Main)
- Spud Size: 2″
-
-
-
-
$197.51- Climatemaster TXV
- Bi-Metal
- TXV/TEV – Thermostatic Expansion Valve
- P1E 1.5
- Replaces: 33B0006N03, 33B0013N08
-
-
$147.07- Climatemaster TXV
- Bi-Metal
- TXV/TEV – Thermostatic Expansion Valve
- BBIZE 1/3
- Replaces: 33B0006N08, 33B0006N14, 33B0006N15
-
$125.46- Climatemaster TXV
- Bi-Metal
- TXV/TEV – Thermostatic Expansion Valve
- 3/8″ ODF
- 2 Ton
- 15 Bleed
- 30″ Capillary
- Made in USA
-
$53.82- QE line piercing valve
- Tube Size: 5/8″ and 1/2″
- Use: high pressure end
- Permanent valve
- Full kit included
-
$30.85
- QE water fountain bubbler
- Adjustable stream regulator
- For drinking fountains
- Forged brass w/ chrome finish
- Connection: 3/8″ NPT/IPS inlet
- Gasket included
-
$155.53
- Climatemaster TXV
- Bi-Metal
- TXV/TEV – Thermostatic Expansion Valve
- 3/8″ ODF
- 3 Ton
- 15 Bleed
- 30″ Capillary
- Made in USA
-
$162.01- Climatemaster TXV
- Bi-Metal
- TXV/TEV – Thermostatic Expansion Valve
- Refrigerant: R410A
- Made in USA
-
-
$91.80- Everwell Expansion Valve
- Connection: 5/8″ x 7/8″ Solder/Sweat
- External Equalization
- R22
- Capacity (Tons): 8
- 60″ capillary length
-
$83.30
- Everwell Expansion Valve
- Connection: 5/8″ x 7/8″ Solder/Sweat
- External Equalization
- R22
- Capacity (Tons): 12
- 60″ capillary length
-
$83.30
- Everwell Expansion Valve
- Connection: 5/8″ x 7/8″ Solder/Sweat
- External Equalization
- R22
- Capacity (Tons): 10
- 60″ capillary length
-
$49.30- Everwell Expansion Valve
- Connection: 3/8″ x 1/2″ Flare
- External Equalization
- R22
- Capacity (Tons): 5
- 30″ capillary length
-
$99.43- Danfoss Expansion Valve
- Connection: 3/8″ x 1/2″ Flare
- Internal Equalization
- R134A
- TN2
-
-

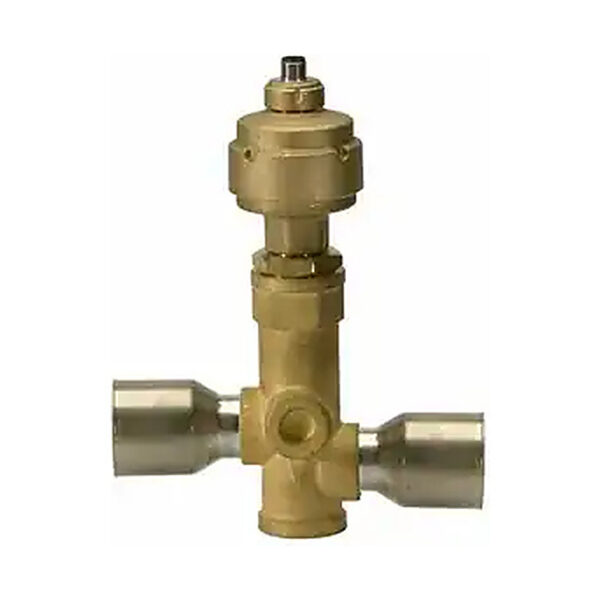

$465.02- Danfoss Regulating Valve
- Inlet connection type: Solder ODF
- Outlet connection type: Solder ODF
- Max. Working Pressure [bar]: 45.5
- Inlet size [in]: 7/8 in
- Outlet size [in]: 7/8 in
-
$249.88- Danfoss Shut Off Vlave
- Approval: CE, EAC, LLC, CDC, TYSK
- Body material: Steel
- Brand: SVL Flexline
- Category: II
- Colour Paint: Reddish brown
- Connection material: Steel
- Connection standard: ASME B 36.10M SCHEDULE 40
- Cv value [gal/min]: 20.18 gal/min
- Direction: Straightway
- Equipment: Handwheel
- Flow direction: Bi-flow
- Flow direction indicator: Embossed 1-way arrow
- Fluid Group: I
- Inlet connection size [in]: 1 in
- Inlet connection size [mm]: 25 mm
- Inlet connection type: Butt weld
- Kv value [m³/h]: 17.4 m³/h
- Max. Working Pressure [bar]: 52 bar
- Max. Working Pressure [psig]: 754 psig
- Neck: Short
-
$456.63
- Danfoss Shut Off Vlave
- Approval: CE, EAC, LLC, CDC, TYSK
- Body material: Steel
- Brand: SVL Flexline
- Category: II
- Colour Paint: Reddish brown
- Connection material: Steel
- Connection standard: ASME B 36.10M SCHEDULE 40
- Cv value [gal/min]: 36.66 gal/min
- Direction: Straightway
- Equipment: Handwheel
- Flow direction: Bi-flow
- Flow direction indicator: Embossed 1-way arrow
- Fluid Group: I
- Inlet connection size [in]: 1.5 in
- Inlet connection size [mm]: 40 mm
- Inlet connection type: Butt weld
- Kv value [m³/h]: 31.6 m³/h
- Max. Working Pressure [bar]: 52 bar
- Max. Working Pressure [psig]: 754 psig
- Neck: Short
-
$1,334.65- Danfoss Shut Off Vlave
- Approval: CE, EAC, LLC, CDC, TYSK
- Body material: Steel
- Brand: SVL Flexline
- Category: II
- Colour Paint: Reddish brown
- Connection material: Steel
- Connection standard: ASME B 36.10M SCHEDULE 40
- Cv value [gal/min]: 322.48 gal/mi
- Direction: Straightway
- Equipment: Handwheel
- Flow direction: Bi-flow
- Flow direction indicator: Embossed 1-way arrow
- Fluid Group: I
- Inlet connection size [in]: 4 in
- Inlet connection size [mm]: 100 mm
- Inlet connection type: Butt weld
- Kv value [m³/h]: 278 m³/h
- Max. Working Pressure [bar]: 52 bar
- Max. Working Pressure [psig]: 754 psig
- Neck: Short
-
$1,023.12
- Danfoss Shut Off Vlave
- Approval: CE, EAC, LLC, CDC, TYSK
- Body material: Steel
- Brand: SVL Flexline
- Category: II
- Colour Paint: Reddish brown
- Connection material: Steel
- Connection standard: ASME B 36.10M SCHEDULE 40
- Cv value [gal/min]: 176.32 gal/min
- Direction: Straightway
- Equipment: Handwheel
- Flow direction: Bi-flow
- Flow direction indicator: Embossed 1-way arrow
- Fluid Group: I
- Inlet connection size [in]: 3 in
- Inlet connection size [mm]: 80 mm
- Inlet connection type: Butt weld
- Kv value [m³/h]: 152 m³/h
- Max. Working Pressure [bar]: 52 bar
- Max. Working Pressure [psig]: 754 psig
- Neck: Short
-
$1,644.48- Grundfos Hydronics
- Series CV Combination Valve (Triple Duty)
- Ref. #: CV80-125
- Part #: 96877847
- Inlet Pipe (125# ANSI): 8″
- Outlet Pipe (125# ANSI): 8″
- Weight (Lbs.): 355
-
$984.00
- Grundfos Hydronics
- Series CV Combination Valve (Triple Duty)
- Ref. #: CV40-125
- Part #: 96877845
- Inlet Pipe (125# ANSI): 4″
- Outlet Pipe (125# ANSI): 4″
- Weight (Lbs.): 102
-
$1,430.40- Grundfos Hydronics
- Series SD Suction Diffuser
- Ref. #: SD1080-125
- Part #: 97523156
- Inlet Pipe (125# ANSI): 10″
- Outlet Pipe (125# ANSI): 8″
- Strainer Open Area (Sq. In.): 280
- Weight (Lbs.): 305
