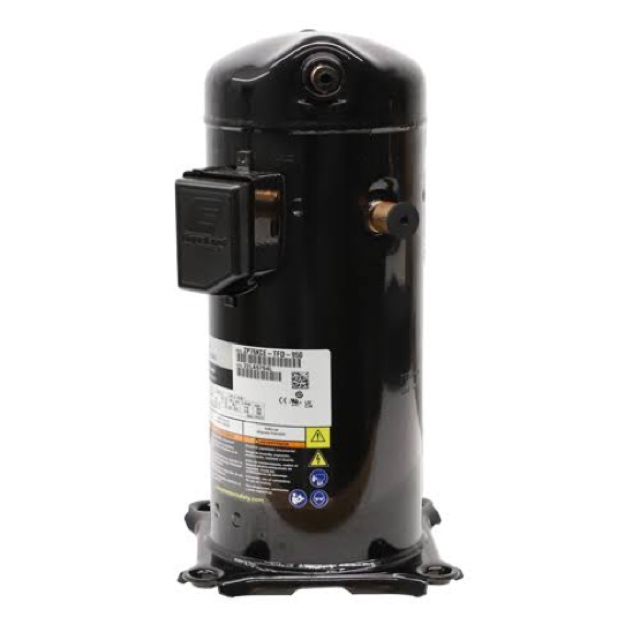

Copeland ZP76KCE compressor — 6.3 ton R-410A scroll
The Copeland ZP76KCE compressor is a hermetic scroll compressor rated at roughly 76,000 BTU/hr, or about 6.3 tons. Copeland engineered it for commercial and industrial air conditioning and heat pump duty. It runs on three-phase power and uses R-410A. Cedars HVAC ships it the same business day from Miami.
Electrical specifications
Voltage: 460 V AC (60 Hz), or 380-420 V AC (50 Hz)
Phase: 3 phase
Rated load amps: 14.0 to 14.3 A
Locked rotor amps: 100.0 A
Motor protection: internal inherent protection
Performance specifications
Cooling capacity: 76,000 to 77,000 BTU/hr
Nominal horsepower: 6.25 to 6.3 HP
Refrigerant: R-410A
Efficiency: 10.9 to 11.0+ BTU/Wh EER
Sound level: 75 dBA average, 80 dBA maximum
Physical and lubrication details
Oil: polyolester (POE)
Oil charge: 56 to 57 oz (about 1.7 L)
Suction connection: 7/8 in stub
Discharge connection: 1/2 in stub
Mounting dimensions: 7.5 in x 7.5 in
Unit dimensions: 9.7 in L x 9.9 in W x 17.4 in H
Net weight: 87 to 93 lbs
Before you install it
First find out what killed the original compressor. Otherwise the replacement will fail the same way. Burned windings, a weak contactor, low charge, or a restricted metering device all take out a new compressor quickly. Therefore check all three legs of the supply, confirm rotation, and verify the charge before startup. If the old compressor burned out, flush the lines and fit a new liquid line drier as well.
Note on voltage
This is a 460 V three-phase compressor. Consequently it will not drop into a 208-230 V system, even though the tonnage may look right. Always match the nameplate voltage before ordering.
Why buy from Cedars HVAC
Genuine OEM parts, never unbranded aftermarket substitutes
Contractor pricing, with volume breaks on repeat orders
Ships from our Miami, FL warehouse for fast nationwide delivery
Real HVAC people on the phone when you need to confirm fitment
What capacity is the Copeland ZP76KCE-TFD-950? This scroll compressor is rated at 6.3 tons, or about 76,000 BTU. Accordingly it is sized for light commercial rooftop and split system work rather than residential equipment.
What power supply does it require? It requires 380-460 V three-phase power. Therefore confirm your building service before ordering, because single-phase sites need a different model.
Can I still buy R-410A compressors? Yes. The AIM Act phase-down limits new R-410A equipment, but service parts for existing systems remain available. As a result you can keep an installed R-410A system running.
Does this compressor ship free? Yes. Cedars HVAC Supply ships this item free to all 50 U.S. states, and orders leave our Miami, Florida warehouse on business days.
What if I ordered the wrong compressor? You have 30 days to return it. Please keep the original packaging, because unused items in resalable condition process fastest.
