Grundfos 96625360 CU200 Control Unit MK2 Solar with Fs for Sq Flex System

Grundfos 96625360 — Grundfos 96625360 CU200 Control Unit MK2 Solar with Fs for Sq Flex System

The Grundfos 96625360 (manufacturer part 96625360) is a genuine OEM HVAC component available at Cedars HVAC, your trusted source for heating, cooling, and refrigeration parts. We stock this HVAC component for fast nationwide shipping from our Miami warehouse, so contractors, facility managers, and homeowners can get the exact replacement they need without delay.

Product details

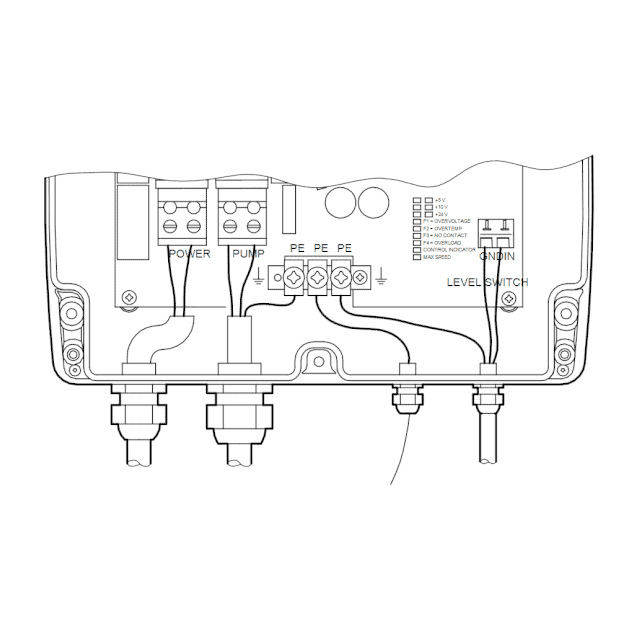

The Grundfos 96625360 CU200 control unit MK2 solar with FS is a combined status, control and communication unit developed for the SQFlex system. Furthermore, the CU200 enables connection of a level switch. The CU200 incorporates cable entries for: power supply connection, pump connection, earth connection, and level switch connection.

Communication between the CU200 and the pump takes place via the pump power supply cable. This is called mains borne signaling (or Power Line Communication), and this principle means that no extra cables between the CU200 and the pump are required. It is possible to start, stop and reset the pump by means of the on/off button. The CU200 control unit offers: System monitoring and Alarm indication.

The following indications allow the operation of the pump to be monitored: Water reservoir is full (level switch), Pump is running, and Input power. The CU200 offers the following alarm indications: Dry running. Service needed in case of: no contact to pump, over voltage, over temperature, overload, and Insufficient energy supply.

View Technical Specifications

Why buy from Cedars HVAC

• Genuine OEM Grundfos parts — not aftermarket substitutes
• Contractor-friendly pricing on every HVAC component
• Fast nationwide shipping from Miami, FL
• Real HVAC expertise — call us at (305) 850-6693 if you need help confirming compatibility
• Financing available through PayPal Pay Later

About this part

This Grundfos 96625360 is part of our Pumps catalog. If you are sourcing HVAC components for a fleet of equipment or a commercial install, contact us for volume pricing. For installation guidance, always refer to the manufacturer documentation and consult a licensed HVAC technician where required.

Shipping and returns

Most Grundfos 96625360 orders ship the same or next business day from Cedars HVAC in Miami, Florida. Standard ground shipping covers the continental United States, and expedited options are available at checkout. Returns are accepted within 30 days on unopened, uninstalled parts — see our return policy for full details. International shipping is available on request; contact our team for a quote.

Frequently asked questions

Is this an OEM Grundfos part? Yes, the Grundfos 96625360 we sell is a genuine Grundfos HVAC component sourced through authorized channels. We do not substitute aftermarket parts unless specifically marked.

Will this HVAC component fit my equipment? Compatibility depends on the model and revision of your existing equipment. If you need help confirming fitment for the Grundfos 96625360, call us at (305) 850-6693 with your unit model number and we will confirm before you order.

Can I get a contractor or wholesale discount? Yes. Cedars HVAC offers volume pricing for licensed HVAC contractors, property managers, and resellers. Request contractor pricing or call us to set up an account.
