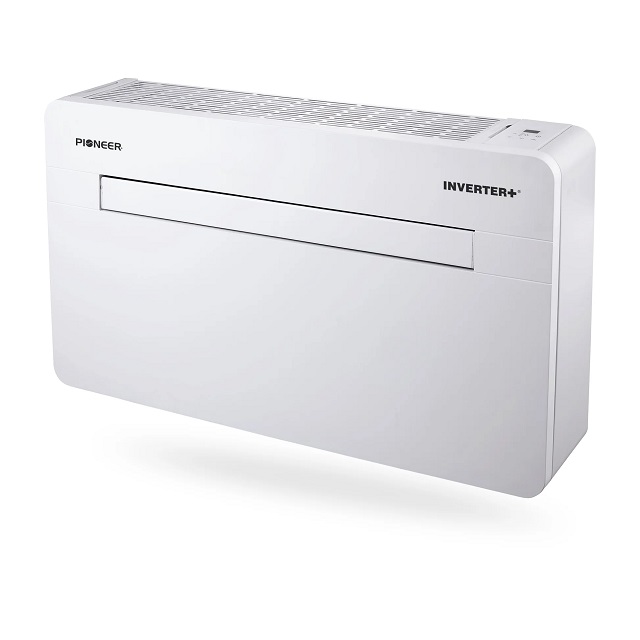

Pioneer 12,000 BTU Packaged Console Inverter Heat Pump, All In One, Through-the-Wall Monoblock Packaged Unit with No Outdoor Condenser, 230V

Our Pioneer® all-in-one packaged console inverter heat pump enables zoned cooling and heating, while offering easy installation with just a single unit. Each unit includes a remote control for effortless cooling, heating, dehumidification, and ventilation.

What’s Included in Your Purchase

• Mounting Bracket
• Wireless Remote Control
• Remote Control Wall Holder
• Remote Control Batteries
• Drain Hose
• Drain Hose Extension
• Exterior Grille(s)
• Flexible Air Duct Panel Inserts
• Screw Kit
• Installation & User Manual
• Wall Drilling Template
• Fresh Air Intake Duct (18 in.)
• Indoor Drain Adapter
• Terminal Connector (Male end, pre-installed on 24V thermostat wiring)
• Cable Clip
• Cable Clip Screw

Summary

• Standard Efficiency Pioneer® All-In-One Packaged Console Inverter Heat Pump System
• Cooling capacity: 11,800 BTU/H
• Heating capacity: 10,900 BTU/H
• Electric Heat capacity: 10,236 BTU/H
• Voltage: 208/230V, 60Hz, 1Ph
• Factory-Precharged with Environmentally Friendly R-32 Refrigerant

Technical Information & Performance

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 11,800 BTU/h

• Heating Rated Capacity: 10,900 BTU/h
• Electric Heat Rated Capacity: 10,236 BTU/h

• Refrigerant Type: R-32
• Refrigerant Charge: 22.9 oz (650 g)
• Rated Power (Cooling): 1,209 W
• Rated Power (Heating): 947 W
• Rated Power (Electric Heater): 3,000 W
• Rated Current (Cooling): 6.1 A
• Rated Current (Heating): 4.8 A
• Rated Current (Electric Heater): 13.6 A
• Airflow: 330 CFM
• Sound Level: 48 / 45 / 42 dB(A)
• Temperature Setting Range (Remote Control): 64-86°F (18-30°C)
• Cooling Mode Operating Range (Indoor): 63-90°F (17-32°C)
• Cooling Mode Operating Range (Outdoor): 63-109°F (17-43°C)
• Heating Mode Operating Range (Indoor): 28-81°F (-2-27°C)
• Heating Mode Operating Range (Outdoor): 28-75°F (-2-24°C)
• Dimensions (WDH): 39″-1/2 x 7″-5/8 x 22″-3/4 Inches
• Weight: 117.0 lbs (53.1 kg)

Product Warranty

Warranty Registration is required within 90 days of purchase.

• Up to 3 years Warranty for Parts
• Up to 3 years Warranty for Compressor

View Technical Specifications
