- Standard Efficiency Vertex Ducted Central Split Heat Pump System
- Cooling capacity: 24,000 BTU/H with 20 SEER2 / 13.3 EER2 efficiency
- Heating capacity: 24,000 BTU/H with 9.4 HSPF2 / 2.1 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph

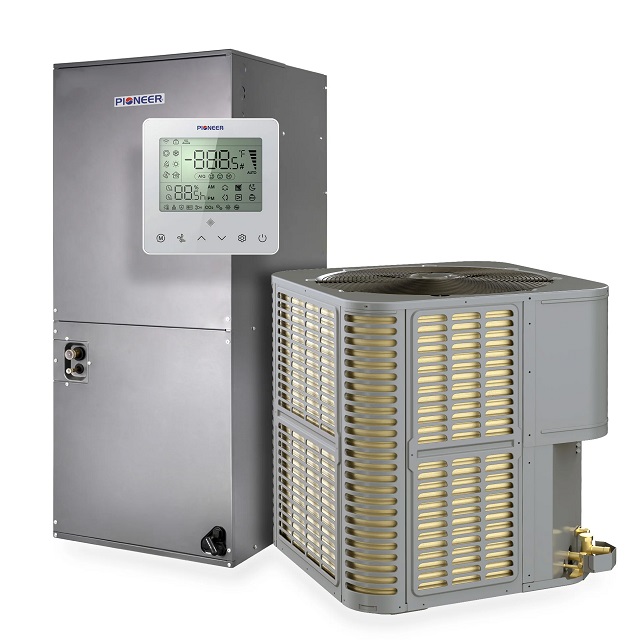

DYC024GCSI18RD — Pioneer Vertex 24,000 BTU 20 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump
$2,880.00
Description
Pioneer part — DYC024GCSI18RD — Pioneer Vertex 24,000 BTU 20 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump
The Pioneer part (manufacturer part DYC024GCSI18RD) is a genuine OEM part available at Cedars HVAC, your trusted source for heating, cooling, and refrigeration parts. We stock this Pioneer part for fast nationwide shipping from our Miami warehouse, so contractors, facility managers, and homeowners can get the exact replacement they need without delay.
Product details
Technical Information & Performance
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 13,500~31,400 BTU/h
- Cooling SEER2: 20.0 BTU/W.h
- Cooling EER2: 13.3 BTU/W.h
- Heating Rated Capacity: 24,000 BTU/h
- Heating Capacity Range: 10,200~35,900 BTU/h
- Heating HSPF2 (Region IV): 9.4 BTU/W.h
- Heating C.O.P.2 (5°F): 2.1 W/W
- Refrigerant Type: R454b
- AHRI Reference: 217048497
Air Handler
- Part Number: DC024GCSICDHRT
- Air Flow (Hi/Lo): 690 / 600 CFM
- Sound Level (Hi/Lo): 51 / 48 dB(A)
- Product Dimensions (WDH): 19″-5/8 x 22″ x 45″-3/4 Inches
- Carton Dimensions (WDH): 22″-7/8 x 25″-5/8 x 47″-5/8 Inches
- Net / Gross Weight: 130 / 143 lbs
Outdoor Unit
- Part Number: YD2436GCSI18RD
- Breaker Needed: 15A (double-pole)
- Sound Level: 76 dB(A)
- Net Dimensions (WDH): 29″-1/8 x 25″ x 29″-1/8 Inches
- Carton Dimensions (WDH): 30″ x 30″ x 26″ Inches
- Net / Gross Weight: 137 / 146 lbs
Vertex™ Ducted Central Split
Ducted air conditioning units provide climate control for multiple rooms using a single system and a network of air ducts. Pioneer’s ducted split systems offer whole-house heating and cooling with consistent comfort. Available in various configurations, our units range from 24,000–60,000 BTU with a SEER of 18. Built from quality materials with smart design, they deliver lasting performance.
IMPORTANT
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to25 ft. per circuit. For longer refrigerant line sets, additional refrigerant is required. System is pre-configured to be used with the included digital controller system thermostat for fully automated variable capacity operations flawlessly using RS485 communications mode. It also provides an option to be controlled by any generic 24 Volt analog thermostat. See instructions to switch control modes between RS485 and 24 V analog modes, if using an alternate thermostats is desired. Variety of optional Electric Strip Heater options possible. They are available with multiple KW ratings as well as with or without breakers. Line sets require braze type connections for both sections and other complex installation tasks are involved, requiring installation by trained professionals.
What’s Included in Your Purchase

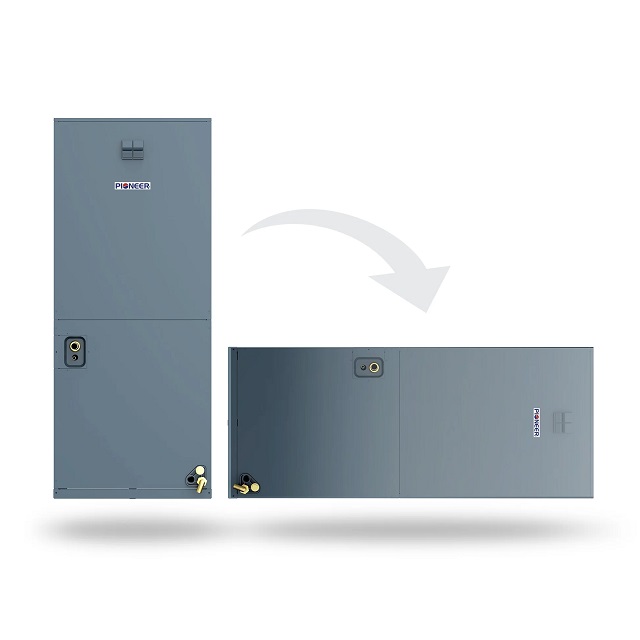

- Air Handling Unit (Multi Position, Convertible)
- Outdoor Unit (Vertical Discharge, Heat Pump)
- Digital Fully Communicating RS485 Thermostat
- Wireless remote access and programming function
- Thermostat and Digital Communication Cables
- Condensate Float Switch
- High-Capacity Bi-Directional Filter Dryer
- Installation and User Manuals
Product Warranty
Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy
- Up to 5 years Warranty for Parts
- Up to 5 years Warranty for Compressor
Why buy from Cedars HVAC
- Genuine OEM Pioneer part — not aftermarket substitute
- Contractor-friendly pricing
- Fast nationwide shipping from Miami, FL
- Real HVAC expertise — call us at (305) 850-6693 if you need help confirming compatibility
- Financing available through Affirm and PayPal Pay Later
About this Pioneer part
This Pioneer part is part of our A/C Systems catalog. Contact us if you need help identifying compatible models or sourcing volume quantities. For installation guidance, always refer to the manufacturer documentation and consult a licensed HVAC technician where required.
Shipping and returns
Most Pioneer part orders ship the same or next business day from Cedars HVAC in Miami, Florida. Standard ground shipping covers the continental United States, and expedited options are available at checkout. Returns are accepted within 30 days on unopened, uninstalled parts — see our return policy for full details.
Frequently asked questions
Is this an OEM part? Yes, the Pioneer part we sell is sourced through authorized channels.
Will this Pioneer part fit my equipment? Compatibility depends on the model. If you need help confirming fitment, call us at (305) 850-6693.
Can I get a contractor discount? Yes — request contractor pricing or call us.
Related categories
Explore more: A/C Systems • All Pioneer parts • Browse all HVAC parts
Additional information
| Weight | 265 lbs |
|---|---|
| Dimensions | 48 × 40 × 32 in |
| Brand | Pioneer |
| Tonnage | 2 |
| Btus | 24,000 |
| Voltage | 208-230 |
| Description | Equipment |
