Pioneer Dual Split 18000 BTU 1.5-Ton Quantum Ultra Wi-Fi 24 SEER2 Energy-Star Multi (2) Zone Wall Mount Air Conditioner Heat Pump 230-Volt with 16 Ft. Kits

$2,022.00

  • Ultra-high efficiency inverter++ ductless multi split dual (2) zone heat pump system
  • (x2) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 18,000 BTU/H (Range: 5,100 minimum – 18,700 maximum) with 24 SEER/13.0 EER efficiency
  • Heating capacity: 20,000 BTU/H nominal (range 4,900 minimum – 23,000 maximum) with 10 HSPF/3.5 COP efficiency
  • Voltage: 208 – 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
  • Energy-Star Certified and Wi-Fi Enabled
SKU: WYT020GLSI24M2-9W16-9W16 Category: Brand:

Description

Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.

  • Ultra-high efficiency inverter++ ductless multi split dual (2) zone heat pump system
  • (x2) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 18,000 BTU/H (Range: 5,100 minimum – 18,700 maximum) with 24 SEER/13.0 EER efficiency
  • Heating capacity: 20,000 BTU/H nominal (range 4,900 minimum – 23,000 maximum) with 10 HSPF/3.5 COP efficiency
  • Voltage: 208 – 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
  • Energy-Star Certified and Wi-Fi Enabled

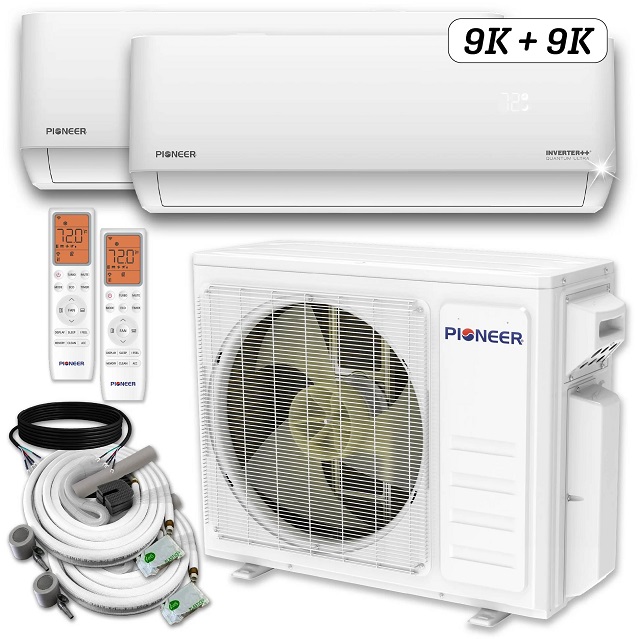

  • Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
  • Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
  • Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
  • Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 50 ft long
  • Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
  • Certified by: ETL, AHRI, DOE for safety, performance and efficiency
  • Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption

View Technical Specifications

Additional information

Weight 236 lbs
Dimensions 48 × 40 × 32 in
Brand

Pioneer
Tonnage

2
Btus

24,000
Voltage

208-230
