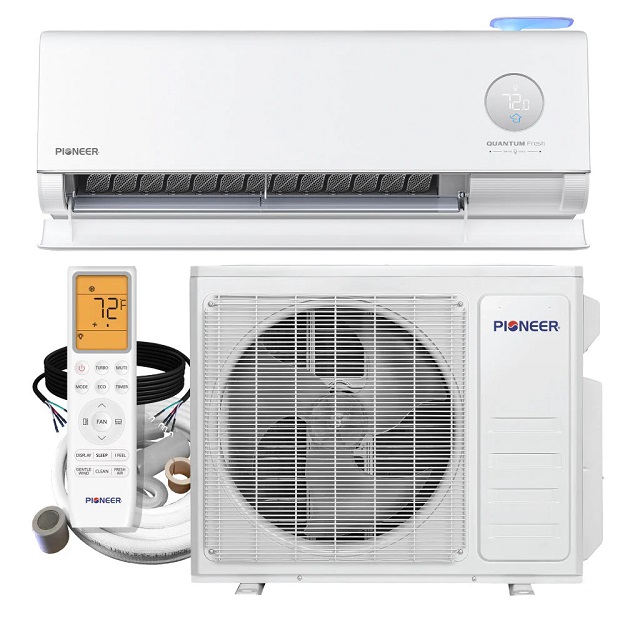

Pioneer Quantum Fresh 12,000 BTU 24 SEER2 High-Wall Ductless Mini-Split Fresh Air Conditioner Inverter Heat Pump with 16 Ft. Kit
pioneer lineset kit

Pioneer Quantum Fresh 12,000 BTU 24 SEER2 High-Wall Ductless Mini-Split Fresh Air Conditioner Inverter Heat Pump with 16 Ft. Kit

$1,239.00

  • High Efficiency Quantum Fresh Ductless Mini Split Heat Pump System
  • Cooling capacity: 12,000 BTU/H with 24 SEER2 / 13 EER2 efficiency
  • Heating capacity: 13,100 BTU/H with 9.5 HSPF2 / 4.2 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R32 Refrigerant
  • Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
SKU: WYT012GLUI25FV-16S Category: Brand:

Description

Technical Information & Performance
System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 3,000~15,000 BTU/h
  • Cooling SEER2: 24.0 BTU/W.h
  • Cooling EER2: 13.0 BTU/W.h
  • Heating Rated Capacity: 13,100 BTU/h
  • Heating Capacity Range: 3,000~13,600 BTU/h
  • Heating HSPF2 (Region IV/V): 9.5 / 8.2 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 4.2 / 2.0 W/W
  • Refrigerant Type: R32
  • Suitable Area: 350~500 sq ft
  • AHRI Reference: 217048739
Indoor Unit
  • Part Number: WT012GLUI25FVQ
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 440 / 410 / 380 / 230 / 150 CFM
  • Fresh Air Volume: 18 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 44 / 43 / 37 / 32 / 30 dB(A)
  • Product Dimensions (WDH): 36″-1/4 x 8″-1/8 x 12″-1/4 Inches
  • Carton Dimensions (WDH): 39″-1/4 x 12″-1/4 x 15″-1/4 Inches
  • Net / Gross Weight: 25.4 / 32.2 lbs.

Outdoor Unit

  • Part Number: YN012GLUI25RPQ
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 53 dB(A)
  • Net Dimensions (WDH): 31″-7/8 x 12″ x 21″-5/8 Inches
  • Carton Dimensions (WDH): 33″-1/2 x 14″-1/8 x 23″-5/8 Inches
  • Net / Gross Weight: 55.1 / 61.7 lbs.
Quantum Fresh™ High-Wall Series
Revolutionizing indoor comfort, the Quantum Fresh™ mini split collection blends advanced heating and cooling with the rejuvenating power of fresh air ventilation. These ultra-efficient, ductless heat pumps use inverter technology for precise climate control—while also drawing in outdoor air, filtering it, and blending it with indoor return air to help replenish oxygen and reduce stale buildup in your space.
IMPORTANT
The outdoor unit is pre-charged with R32 Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the “Without Installation Kit” option unless you are providing one yourself.
Features
  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Fresh Air Infusion System – Brings in, Filters, and Mixes Outdoor Air to Replenish Indoor Oxygen
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
Functional Remote
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature
What’s Included in Your Purchase
  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries
  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual
Product Warranty
Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy
  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor

Additional information

Weight 236 lbs
Dimensions 48 × 40 × 32 in
Brand

Pioneer
Tonnage

2
Btus

24,000
Voltage

208-230
Description

Equipment
