In the world of high-performance HVAC/R systems, the compressor is the heart of the operation. When the heart stops, the entire system fails, leading to costly downtime and potential inventory loss in commercial refrigeration applications. However, at CedarsHVAC.com, we believe in OPERATIONAL EXCELLENCE. Replacing a compressor without first identifying the root cause of the failure is a recipe for repeat disaster.
A diagnostic-first approach is the hallmark of a professional technician. Before you condemn a unit, you must rule out external factors such as electrical inconsistencies and system-wide mechanical issues like liquid hammer. This guide provides the technical framework required to troubleshoot rotary compressors from industry-leading brands like Bautzen and GMCC Toshiba.
SECTION 1: FAILURE TO START – ELECTRICAL DIAGNOSTICS
When a rotary compressor fails to start, the issue is often found in the electrical supply or the starting components rather than the internal motor windings themselves. Follow these stark, data-heavy diagnostic steps to isolate the fault.
VOLTAGE DROP AND POWER SUPPLY
Verify that the compressor is receiving the correct voltage as specified on the nameplate. A voltage drop of more than 10% during startup can prevent the rotor from overcoming initial torque requirements.
- MEASURE: Check voltage at the load side of the heavy-duty HVAC contactor.
- IDENTIFY: Look for pitted contacts or loose wiring that may cause high resistance.
FAILED START CAPACITOR
The start capacitor provides the phase shift necessary to create starting torque. If the capacitor is out of spec or "open," the compressor will typically hum for a few seconds before tripping the internal overload.
- TECHNICAL ATTRIBUTE: Always check the microfarad (uF) rating against the manufacturer’s specification using a calibrated multimeter.
- REPLACEMENT: Ensure the new capacitor matches the voltage rating (e.g., 370V or 440V) to prevent premature dielectric breakdown.
TRIPPED MOTOR OVERLOAD
Rotary compressors, including models from Bautzen and GMCC, utilize an internal thermal protector. If the compressor shell is hot to the touch, the overload has likely tripped to protect the windings from high-temperature failure.
- DIAGNOSTIC STEP: Measure resistance between the Common (C), Start (S), and Run (R) terminals. An "open" reading on all terminals usually indicates the thermal protector is open.
- ACTION: Cool the compressor shell with water or air and re-test. If the circuit remains open after cooling, the protector is permanently damaged.
SECTION 2: LIQUID HAMMER AND CATASTROPHIC FAILURE PREVENTION
One of the most violent and preventable causes of compressor failure is LIQUID HAMMER. Because liquids are incompressible, liquid refrigerant entering the suction port can lead to broken valves, bent connecting rods, or shattered scrolls.
THE CAUSE: LOW SUPERHEAT OR OVERCHARGING
Liquid hammer typically occurs during the startup cycle or when the system is significantly overcharged. When superheat is too low, the refrigerant remains in a liquid or saturated state as it enters the compressor.
- KEY METRIC: To ensure long-term reliability, maintain a minimum superheat of 3K–6K (5.4°F–10.8°F) at the compressor suction inlet.
- PREVENTION: Utilize correctly sized suction line accumulators to trap liquid refrigerant before it reaches the compressor.
SYSTEM EQUALIZATION
In systems with capillary tubes or fixed orifices, pressures must equalize before the compressor restarts. A "hard start" condition often arises when the compressor attempts to start against a high pressure differential, leading to locked rotor amps (LRA) and eventual motor burnout.
PRO TIP: Installing a Nu-Calgon NuStart Compressor Soft Starter can significantly reduce start-up power demand and protect the motor from the stresses of high-torque starts.
SECTION 3: TECHNICAL PRODUCT HIGHLIGHTS
At CedarsHVAC.com, we source only TRUSTED industry-leading brands. Below are the technical specifications for our top-performing rotary and fractional compressors.

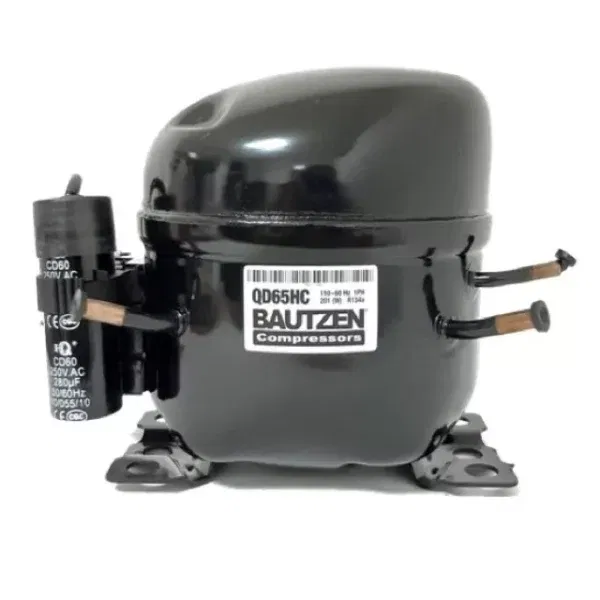

BAUTZEN FRACTIONAL REFRIGERATION COMPRESSOR
