MRCOOL DIYCASSETTE12HP-230D25-O + DIYHH-12-HP-C-230D25-O – DIY 5th Gen OuttaSight 12K BTU 230V Complete Single-Zone Ceiling Cassette System Hyper Heat with 25 ft Lineset

MRCOOL® DIY® 5th Gen OuttaSight™ 12,000 BTU Complete Single-Zone Ceiling Cassette System Hyper Heat

This is a complete single-zone heat pump system, not a single component: the MRCOOL® DIY® 5th Generation OuttaSight™ 12,000 BTU ceiling cassette (DIYCASSETTE12HP-230D25-O) matched to its factory-certified 230V outdoor condenser (DIYHH-12-HP-C-230D25-O). The 25 ft. pre-charged DIY® lineset ships inside the condenser carton, so everything needed for a single-zone installation arrives together.

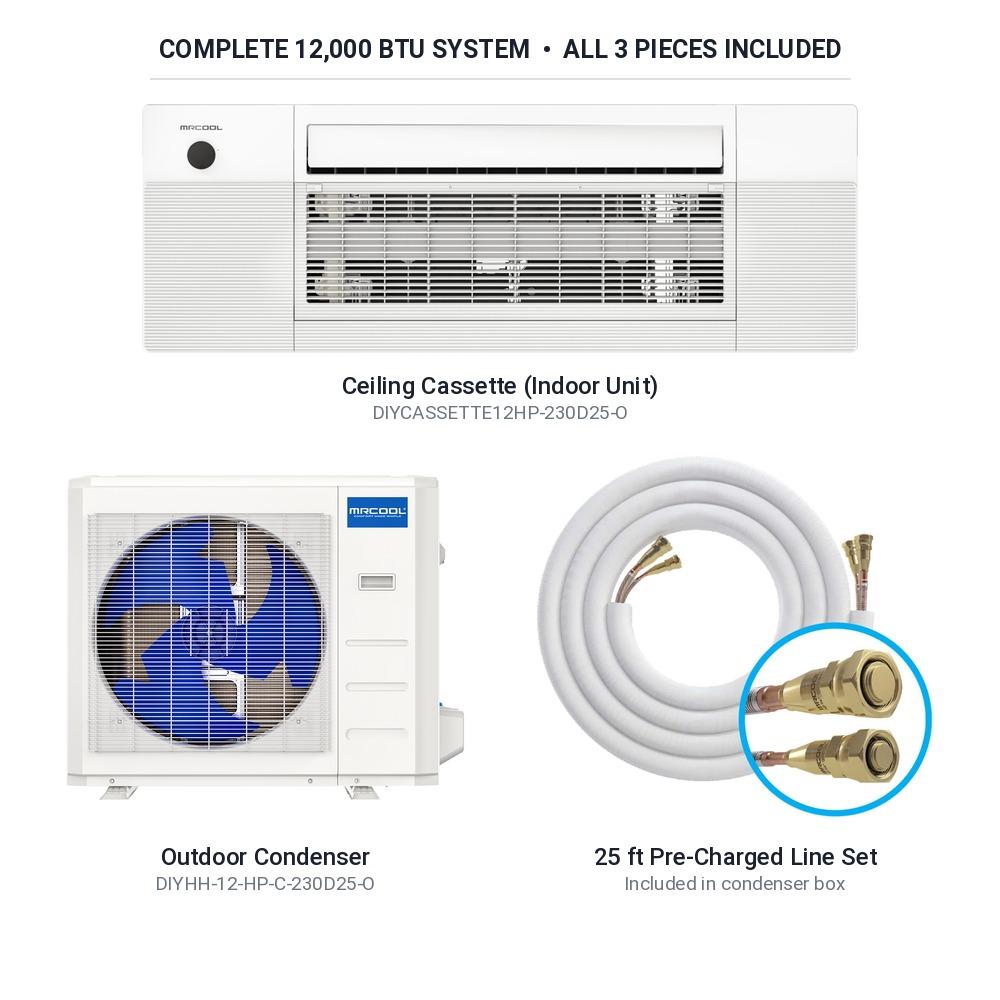

What is in the box

• (1) DIYCASSETTE12HP-230D25-O — DIY® 5th Gen OuttaSight™ 12,000 BTU 230V ceiling cassette air handler with remote control
• (1) DIYHH-12-HP-C-230D25-O — DIY® 5th Gen Hyper Heat 12,000 BTU 230V outdoor condenser
• (1) 25 ft. pre-charged DIY® lineset, included in the condenser carton

Why buy the matched set

• Warranty integrity — MRCOOL® ties its optional limited lifetime compressor warranty, 7-year compressor replacement, and 5-year parts coverage to a matched 5th Generation cassette-and-condenser pair. Mismatched pairings put that coverage at risk.
• Certified pairing — MRCOOL® specifically certifies DIYCASSETTE12HP-230D25-O for single-zone use with DIYHH-12-HP-C-230D25-O. Not every condenser in the DIY® line is approved for the OuttaSight™ cassettes.
• Hyper Heat performance — the DIYHH condenser maintains rated heating capacity in far colder outdoor temperatures than a standard DIY® condenser, making it the right choice for genuine cold-climate heating rather than shoulder-season use.
• No lineset to source — the cassette alone ships without a lineset. This condenser supplies the 25 ft. pre-charged lineset in its own carton.
• No vacuum pump, no refrigerant handling — the pre-charged quick-connect lineset is what makes the DIY® series owner-installable.

Product details

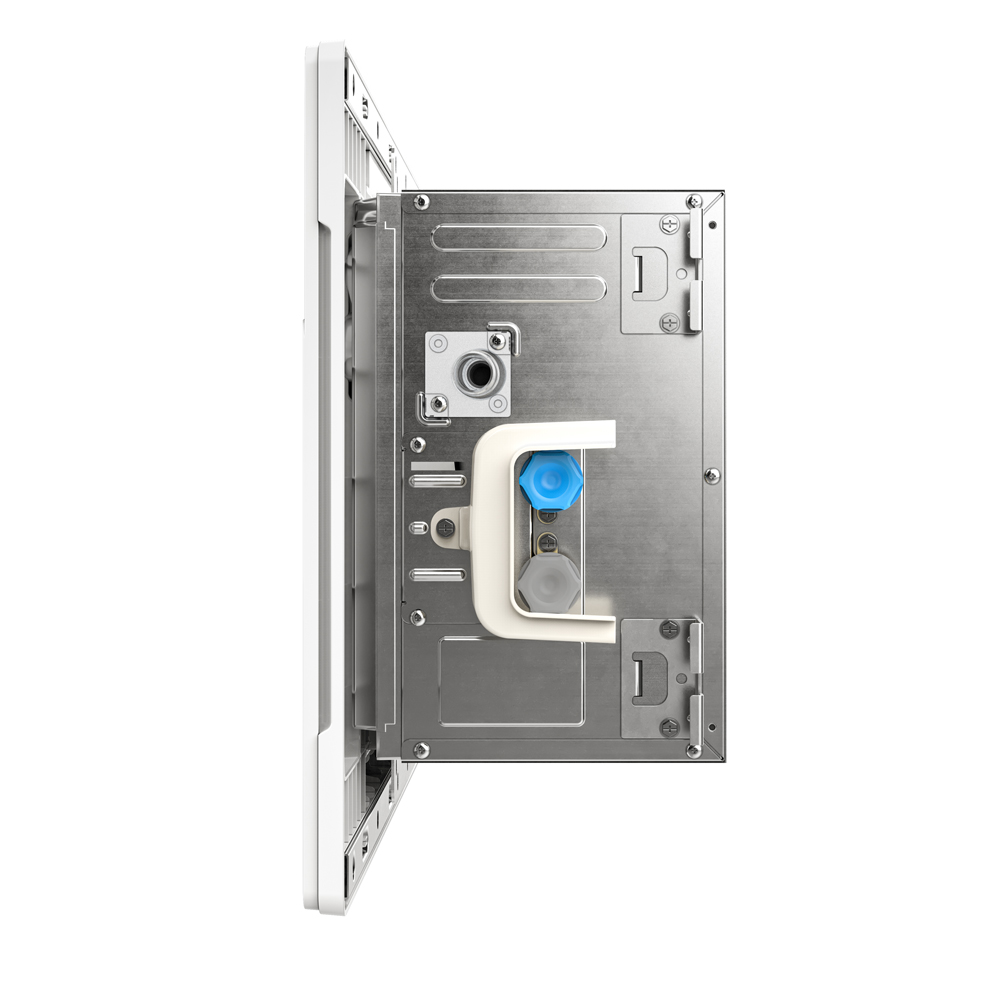

The OuttaSight™ Ceiling Cassette delivers efficient heating and cooling while staying discreet and out of sight, recessed into the ceiling rather than occupying wall space. Rated at 23 SEER2 and pre-charged with R-454B refrigerant, this system covers roughly 450-700 sq. ft.

• Low profile installation — a recessed ceiling profile that disappears into the room.
• New construction or retrofit — designed to recess between all common joist types on 16 in. centers, including pre-manufactured I-joists.
• Smart control — schedules, temperature parameters, and remote management from your phone via the MRCOOL® Smart HVAC app.

Specifications

• Capacity: 12,000 BTU/h (1 ton)
• Efficiency: 23 SEER2
• Voltage: 230V / 60 Hz
• Refrigerant: R-454B, pre-charged
• Zones: 1 (single-zone)
• Lineset: 25 ft. pre-charged, included
• Coverage: approx. 450-700 sq. ft.

Building a multi-zone system instead?

The OuttaSight™ cassette can also run as one zone on a DIY® 5th Gen multi-zone condenser (DIY-MULTI3-18HP230D-O, DIY-MULTI4-27HP230D-O, DIY-MULTI5-36HP230D-O, DIY-MULTI6-48HP230D-O, or DIY-MULTI6-55HP230D-O). Multi-zone condensers do not include linesets — each zone needs its own DIY® lineset purchased separately. In that case order the cassette on its own rather than this set.

Why buy from Cedars HVAC

• Genuine OEM MRCOOL® equipment — never aftermarket substitutes
• Matched, factory-certified pairings so your warranty stays intact
• Fast nationwide shipping from Miami, FL
• Real HVAC expertise — our team confirms compatibility before you order
• Financing available at checkout

Shipping and returns

Most orders ship the same or next business day. Standard ground shipping covers the continental United States, and expedited options are available at checkout. Returns are accepted within 30 days on unopened, uninstalled equipment — see our return policy for full details.

Frequently asked questions

Does this include the lineset? Yes. The 25 ft. pre-charged DIY® lineset ships inside the DIYHH-12-HP-C-230D25-O condenser carton. No separate lineset purchase is needed for this single-zone system.

Is this the complete system? Yes — indoor cassette, outdoor condenser, and lineset. Nothing further is required beyond electrical connection and mounting hardware.

Can I add more zones later? Not to this condenser — DIYHH-12-HP-C-230D25-O is single-zone. Adding zones later means moving to a DIY® multi-zone condenser.

Can I get a contractor or wholesale discount? Yes. Request contractor pricing to set up an account.
