RYB036GMSI20RL — Pioneer Quantum Ultra 36,000 BTU 18.7 SEER2 230V Slim-Duct Ceiling Concealed Mini-Split Air Conditioner Inverter Heat Pump with 10 ft Line Set

RYB036GMSI20RL — Pioneer Quantum Ultra 36,000 BTU 18.7 SEER2 230V Slim-Duct Ceiling Concealed Mini-Split Air Conditioner Inverter Heat Pump

The Pioneer Quantum Ultra 36,000 BTU slim-duct ceiling concealed ducted mini-split (manufacturer part RYB036GMSI20RL) is a complete, factory-matched single-zone heat pump system with the 10 ft copper line set included sold by Cedars HVAC in Miami, Florida. One outdoor condenser (YN036GMSI20RUG) pairs with one indoor unit (RB036GMSILDFHG) — this is a single-zone system, not a multi-zone. It ships nationwide, and our team can confirm sizing before you order.

At 18.7 SEER2 and roughly 3 ton of capacity, this unit both cools and heats, so it replaces a separate air conditioner and furnace in the zone it serves. It is a strong fit for jobs that need hidden equipment with real ductwork — hotels, medical offices, and high-end residential.

Product details

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 36,000 BTU/h
• Cooling Capacity Range: 7,900~42,500 BTU/h
• Cooling SEER2: 18.7 BTU/W.h
• Cooling EER2: 10.1 BTU/W.h
• Heating Rated Capacity: 40,000 BTU/h
• Heating Capacity Range: 8,100~43,500 BTU/h
• Heating HSPF2 (Region IV/V): 10.2 / 7.8 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.7 / 2.1 W/W
• Refrigerant Type: R454b
• Recommended Room Size: 1,000~1,400 sq ft
• Minimum Room Size: 104 sq ft
• Piping Diameter: 3/4″ (Gas) / 3/8″ (Liquid)
• AHRI Reference: 218010993

• Part Number: RB036GMSILDFHG
• Air Flow (Turbo/Hi/Med/Lo/Mute): 1,235 / 1,059 / 941 / 765 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 45 / 39.5 / 33 / 30 dB(A)
• Product Dimensions (WDH): 47″-1/4 x 29″-1/2 x 11″-7/8 Inches
• Carton Dimensions (WDH): 56″-1/8 x 33″-7/8 x 14″-1/8 Inches
• Net / Gross Weight: 106.3 / 120.3 lbs

• Part Number: YN036GMSI20RUG
• Breaker Needed: 40A (double-pole)
• Sound Level: 63 dB(A)
• Net Dimensions (WDH): 37″-1/4 x 16″-1/4 x 31″-7/8 Inches
• Carton Dimensions (WDH): 42″-7/8 x 19″-5/8 x 34″-7/8 Inches
• Net / Gross Weight: 152.4 / 162.5 lbs

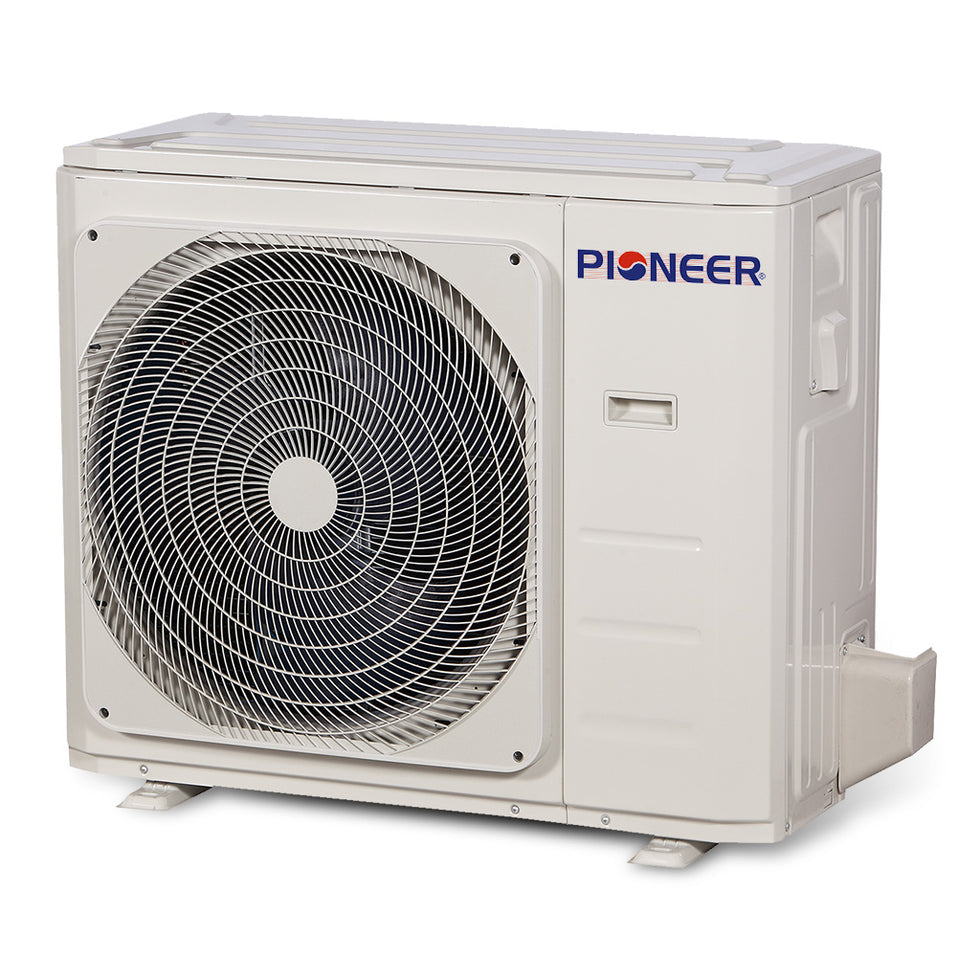

• Outdoor condenser (YN036GMSI20RUG)
• Indoor unit (RB036GMSILDFHG)

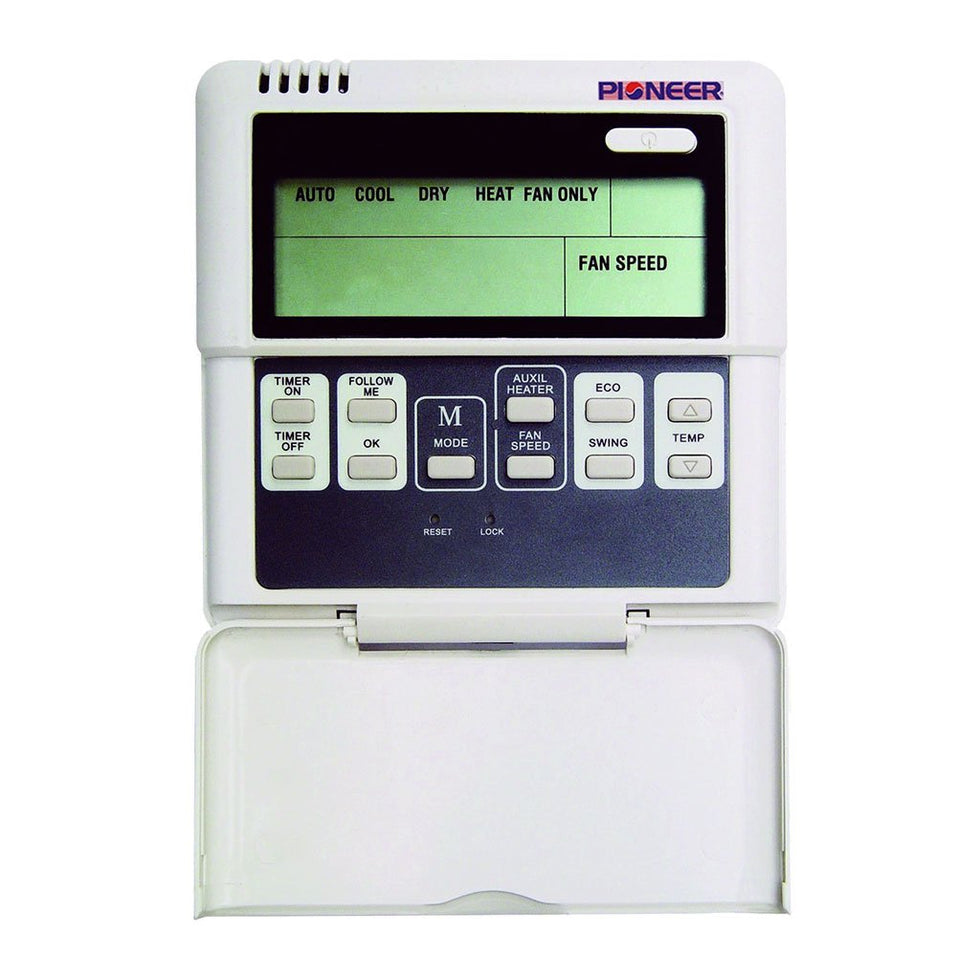

• Wireless remote control with wall holder

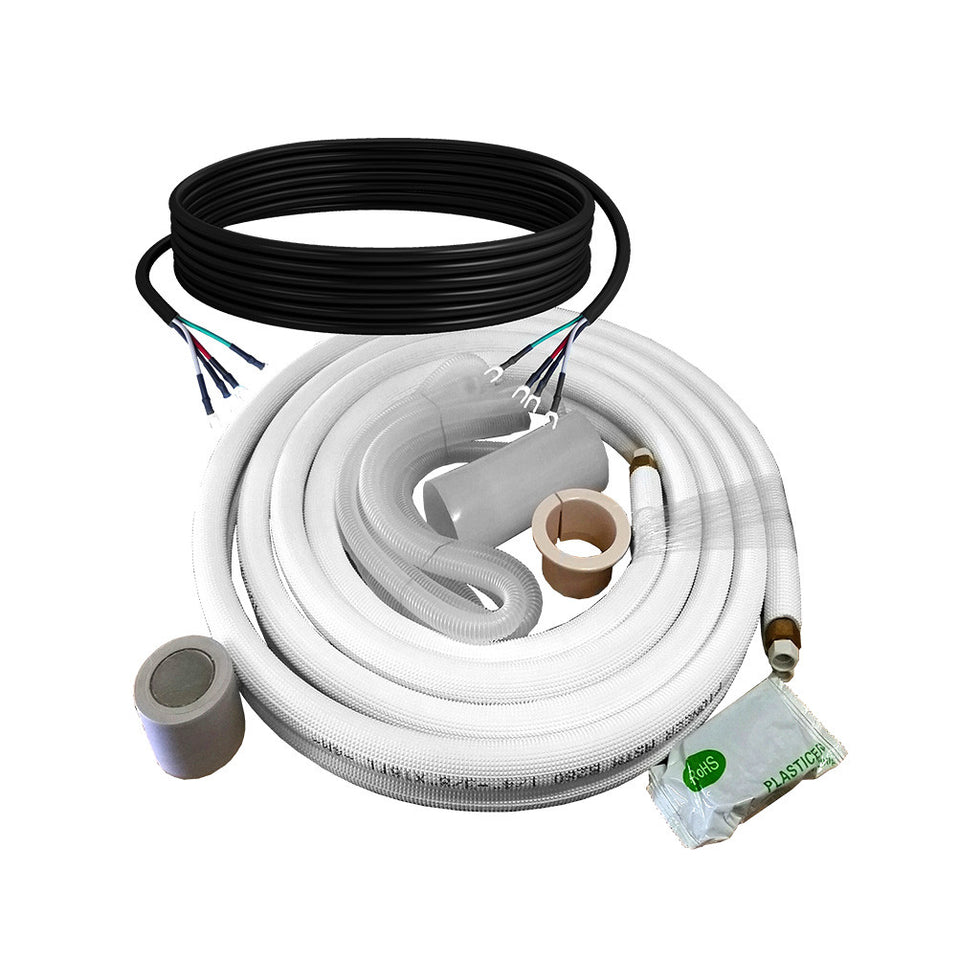

• 10 ft insulated, pre-flared copper line set (3/8″ liquid x 3/4″ gas)
• 10 ft 4-lead 16-gauge indoor-to-outdoor communication cable
• 10 ft condensate drain hose
• Wall passage sleeve with cap and putty
• Non-adhesive wrapping tape (2″ wide, 50 ft roll)
• Installation and user manuals

• Up to 5 years warranty on parts
• Up to 5 years warranty on the compressor

Why buy from Cedars HVAC

• Genuine OEM Pioneer equipment — not an aftermarket substitute
• Contractor-friendly pricing
• Fast nationwide shipping from Miami, FL
• Real HVAC expertise — call (305) 850-6693 if you need help confirming sizing or fitment
• Financing available at checkout

About this Pioneer system

This Pioneer Quantum Ultra unit is part of our A/C Systems catalog. It is AHRI-certified under reference 218010993. Contact us if you need help sizing a zone, quoting several units for one job, or sourcing volume quantities. For installation guidance, always refer to the manufacturer documentation and use a licensed HVAC technician — refrigerant work requires EPA 608 certification.

Shipping and returns

Most Pioneer system orders ship the same or next business day from Cedars HVAC in Miami, Florida. Equipment this size moves by LTL freight; standard ground covers the continental United States and expedited options are available at checkout. Returns are accepted within 30 days on unopened, uninstalled equipment — see our return policy for full details.

Frequently asked questions

Is this a complete system? Yes — condenser, indoor unit, and a 10 ft copper line set with communication cable and drain hose. Nothing major is sold separately for a standard 10 ft run.

What if my line run is longer than 10 feet? We stock 16, 25, 33, and 50 ft line sets. Call (305) 850-6693 before ordering and we will size it to your run.

Is this a single-zone or multi-zone unit? Single-zone — one outdoor unit to one indoor unit. It cannot be expanded to additional indoor heads.

What size room does 36,000 BTU cover? Pioneer rates this unit for 1,000~1,400 sq ft. Insulation, ceiling height, sun exposure, and climate all shift that number, so call (305) 850-6693 if you want it checked.

Does it heat as well as cool? Yes, it is a heat pump. Heating capacity is 40,000 BTU/h at 10.2 HSPF2.

What refrigerant does it use? R454b, factory pre-charged in the outdoor unit.

What electrical does it need? 208~230V, 60Hz, 1Ph on a 40A (double-pole) circuit.

Can I get contractor pricing? Yes — request contractor pricing or call (305) 850-6693.
