TWA120K3DAAE02Q + TWE120K3BAAP01L — Trane Odyssey 10 Ton Split System Heat Pump, 208-230V 3-Phase, R-454B, Outdoor Unit + Air Handler (Replaces TWA120K3DAA / TWE120K3BAA)

Trane 10 Ton Split Heat Pump — Odyssey TWA120K3 + TWE120K3, R-454B, 208-230V 3-Phase

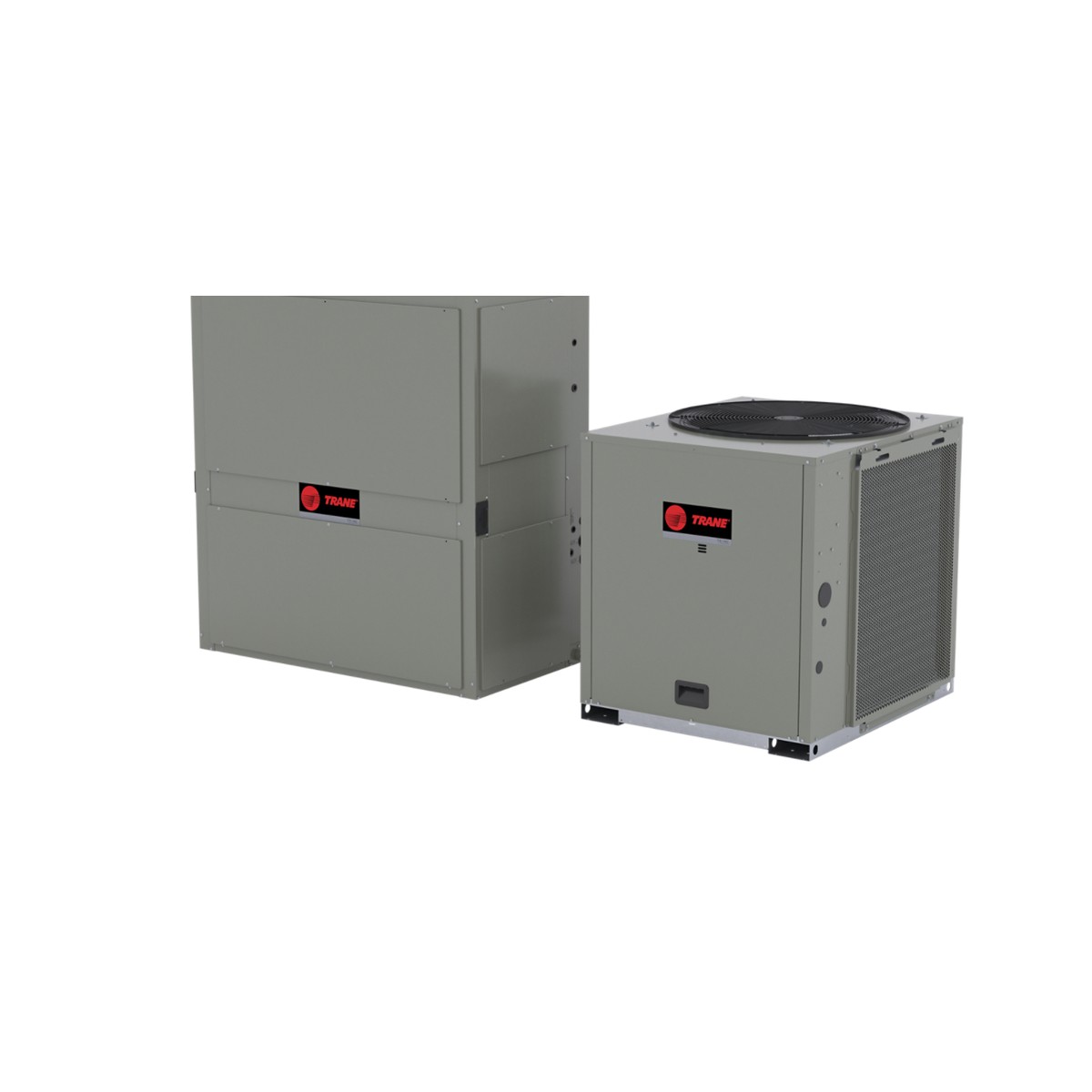

This Trane 10 ton split heat pump system pairs the Trane Odyssey TWA120K3DAAE02Q outdoor heat pump with the matching TWE120K3BAAP01L air handler. It is the current R-454B replacement for the discontinued R-410A TWA120K3DAA / TWE120K3BAA system, at the same 10 ton capacity and 208-230/3/60 power.

What’s included

• TWA120K3DAAE02Q: Trane Odyssey 10 ton split system heat pump outdoor unit, 208-230/3/60, R-454B
• TWE120K3BAAP01L: Trane Odyssey 10 ton air handler, 208-230/3/60, R-454B

Old model to new model

Trane replaced the R-410A TWA120K3DAA heat pump and TWE120K3BAA air handler with the R-454B TWA120K3DAAE02Q and TWE120K3BAAP01L. Capacity, voltage and the Odyssey cabinet family carry over, so this Trane 10 ton split heat pump is the direct replacement on most existing 10 ton jobs. R-454B is the low-GWP A2L refrigerant required for new split systems under the EPA AIM Act. Because R-454B equipment uses different line sizing rules and leak-detection requirements, check the line set and the current Trane installation guide.

Where a Trane 10 ton split heat pump is used

A 10 ton Odyssey split system is used where a rooftop unit is not practical: mechanical rooms, mezzanines, warehouses, churches, gyms and condo common areas. The heat pump provides both cooling and heating from one outdoor unit, and the air handler can be fitted with a Trane electric heater kit for supplemental heat.

Need accessories? See our Trane electric heater kits, line sets, commercial A/C systems and thermostats.

Before you order

1. Confirm 208-230 V three-phase power at both units.
2. Check air handler orientation and the supply and return duct connections.
3. Verify line set size and length against Trane’s R-454B guidelines.
4. Call (305) 850-6693 so we can confirm the match before the order is released.

Performance data, dimensions and wiring are published in Trane’s literature for Trane commercial packaged units and split systems.

Frequently asked questions

What replaces the Trane TWA120K3DAA and TWE120K3BAA?

The R-454B Trane Odyssey TWA120K3DAAE02Q heat pump and TWE120K3BAAP01L air handler.

Is this a heat pump or an air conditioner?

A heat pump. It provides both cooling and heating.

What voltage is it?

208-230 V, three phase, 60 Hz, for both the outdoor unit and the air handler.

Is electric heat included?

No. Supplemental electric heater kits for the TWE air handler are sold separately.

How does it ship?

Orders are prepared and shipped by LTL freight within 5–7 business days. A licensed HVAC contractor should install it.
